DP401 diaphragm vacuum pump

DP401 diaphragm vacuum pump

ZZKD sells DP401 diaphragm vacuum pump, which is widely used in chemical, chemical, laboratory and other industries. It has compact structure, small volume, light weight and convenient disassembly and assembly.

Feature:

It provides vacuum conditions for evaporation, distillation, crystallization, drying, sublimation, filtration and decompression, and degassing. It is also suitable for solvent recovery, various highly toxic, flammable and explosive, strong acid, and strong alkali extraction.


Advantage:

1. The air inlet separation bottle can prevent solid particles and liquid water from entering the pump body.

2. The vacuum is stable and easy to control the vacuum degree.

3. Reasonable transmission design, self-cooling exhaust system, long-term continuous operation.

4. Small size, light weight, easy to move, saving laboratory space.

5. It can maintain high efficiency and will not reduce efficiency due to wear.

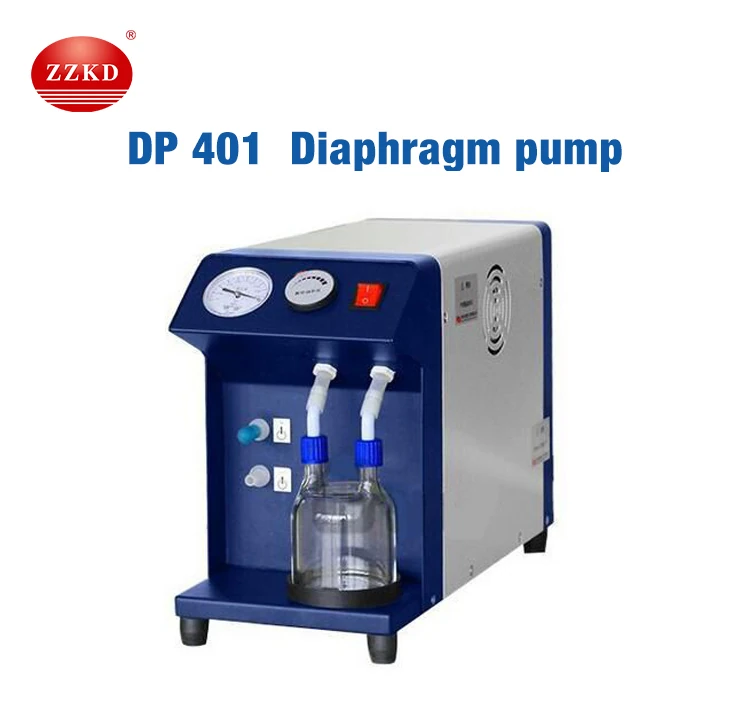

chemistry diaphragm vacuum pump

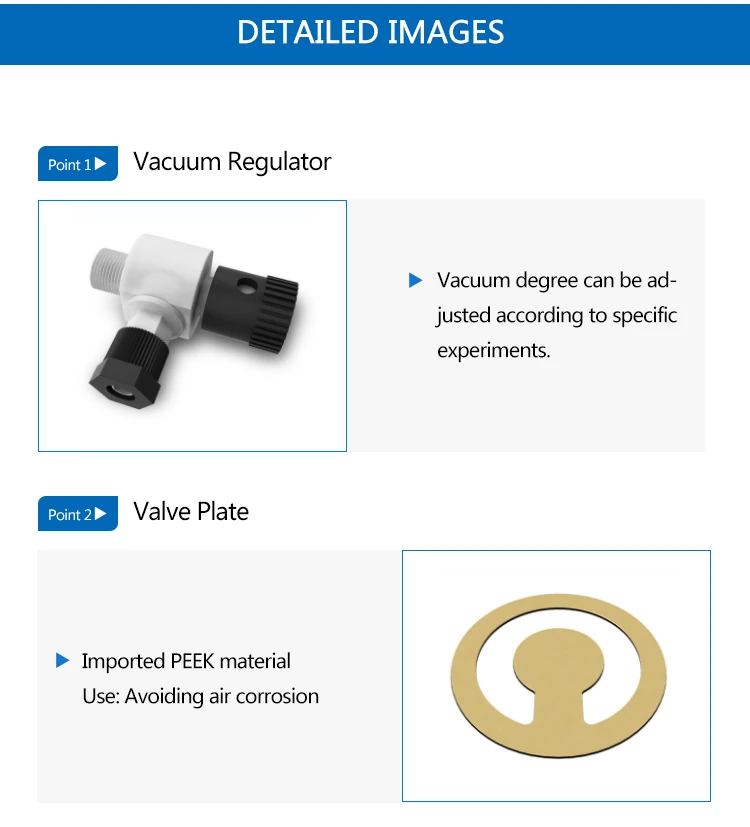

compact diaphragm vacuum pump

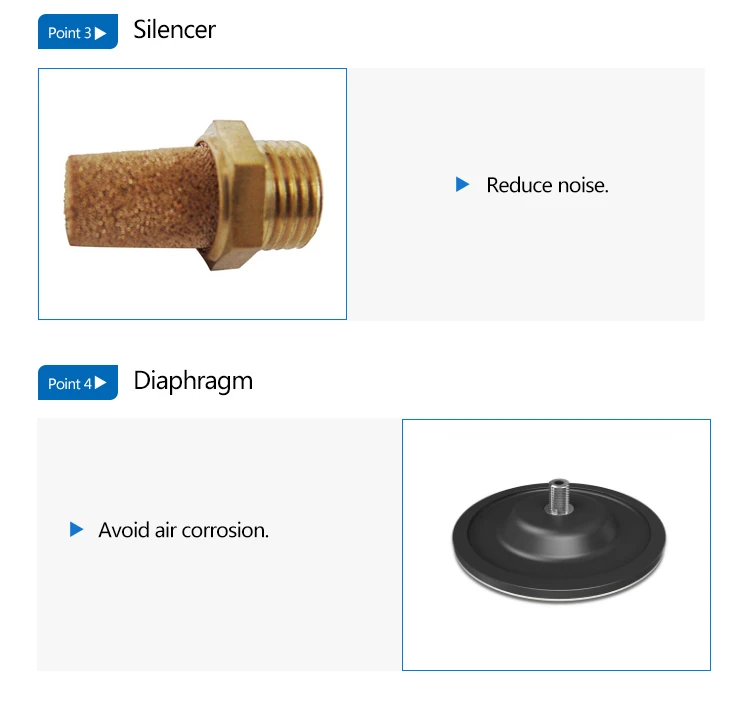

diaphragm vacuum pump for sale

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories


FAQ:

1. What is the working principle of a diaphragm vacuum pump?

The motor drives the diaphragms on the left and right plungers to reciprocate one after the other through the reduction box. In the left and right pump chambers, there are four upper and lower one-way ball valve diaphragms, which cause the volume change in the working chamber, forcing the four one-way ball valves to open and close alternately, so as to continuously suck and discharge the liquid.



2. Why is the flow rate of the diaphragm vacuum pump reduced?

There is air leakage in the suction pipe, the suction pipe is not immersed in liquid, the suction port diameter is small, the end face gap is too large, the pump shaft speed is slow, the filter is blocked, and the pump is worn.



3. What models of your diaphragm vacuum pumps are available?

Our hot-selling models are DP401, P20 and MPC series. We support customization. If you need other models, you can also contact us.


Model

DP401

PowerW

250 W

Power supply(V/Hz)

220/50

Speed(rpm)

1400

Inspiratory diameter (mm)

ф10

Exhaust diameter (mm)

ф10

Maximum vacuum (DPA)

0.09820mbar

Pumping capacity (L / min)

45

Overall dimension (mm)

195L×440W×290H

Weight (kg)

15


Please leave your contact information, we will arrange the business staff to contact you as soon as we see the message.
