SHZ circulating water vacuum pump

SHZ circulating water vacuum pump

The SHZ series vertical circulating water vacuum pump has the characteristics of no oil, no pollution, corrosion resistance, low noise, convenience and flexibility.

Feature:
Circulating water vacuum pump is a kind of laboratory vacuum generator that uses water jet to generate vacuum. Especially suitable for universities, research institutes, chemical, pharmaceutical, biochemical, food, pesticide, agricultural engineering, biological engineering and other industries.


Advantage:

1. One machine for multi-pipe operation, this machine is equipped with three sets (five sets) of suction heads, which can be used individually or in parallel.

2. The pumping capacity is larger, which is applied to the vacuum needs of large pumping capacity.

3. No pollution, the cabinet body is made of polyvinyl chloride plastic, and the outer shell is made of stainless steel and cold plate electrostatic sprayed plastic shell.

4. The pump body and impeller are made of corrosion-resistant reinforced polypropylene and corrosion-resistant materials.

5. Equipped with casters, easy to move, suitable for laboratories and workshops.

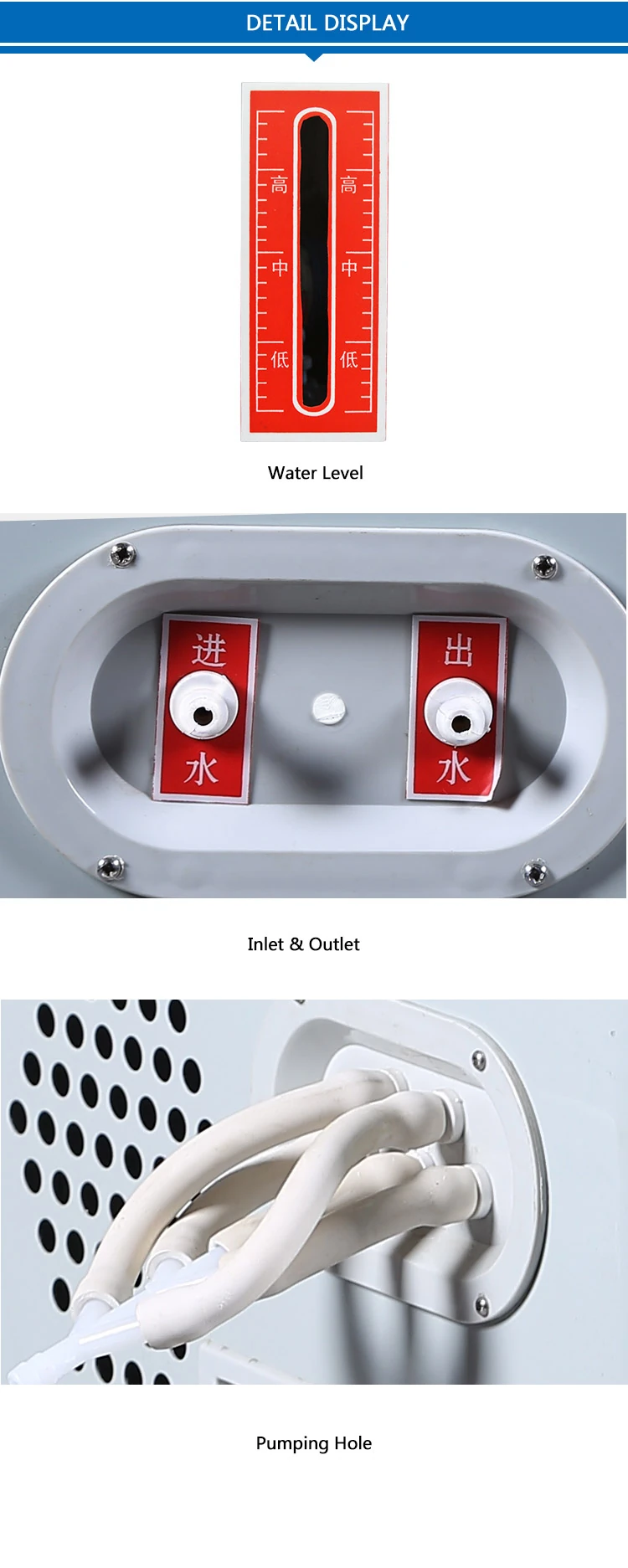

6. The water level of this machine, the indicator light shows (high, medium, low).

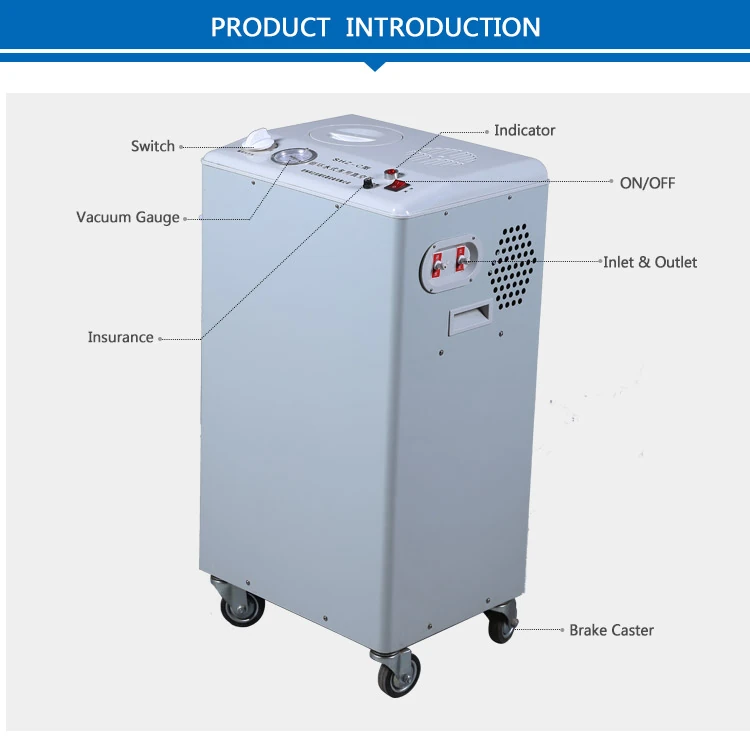

circulating water aspirator vacuum pump

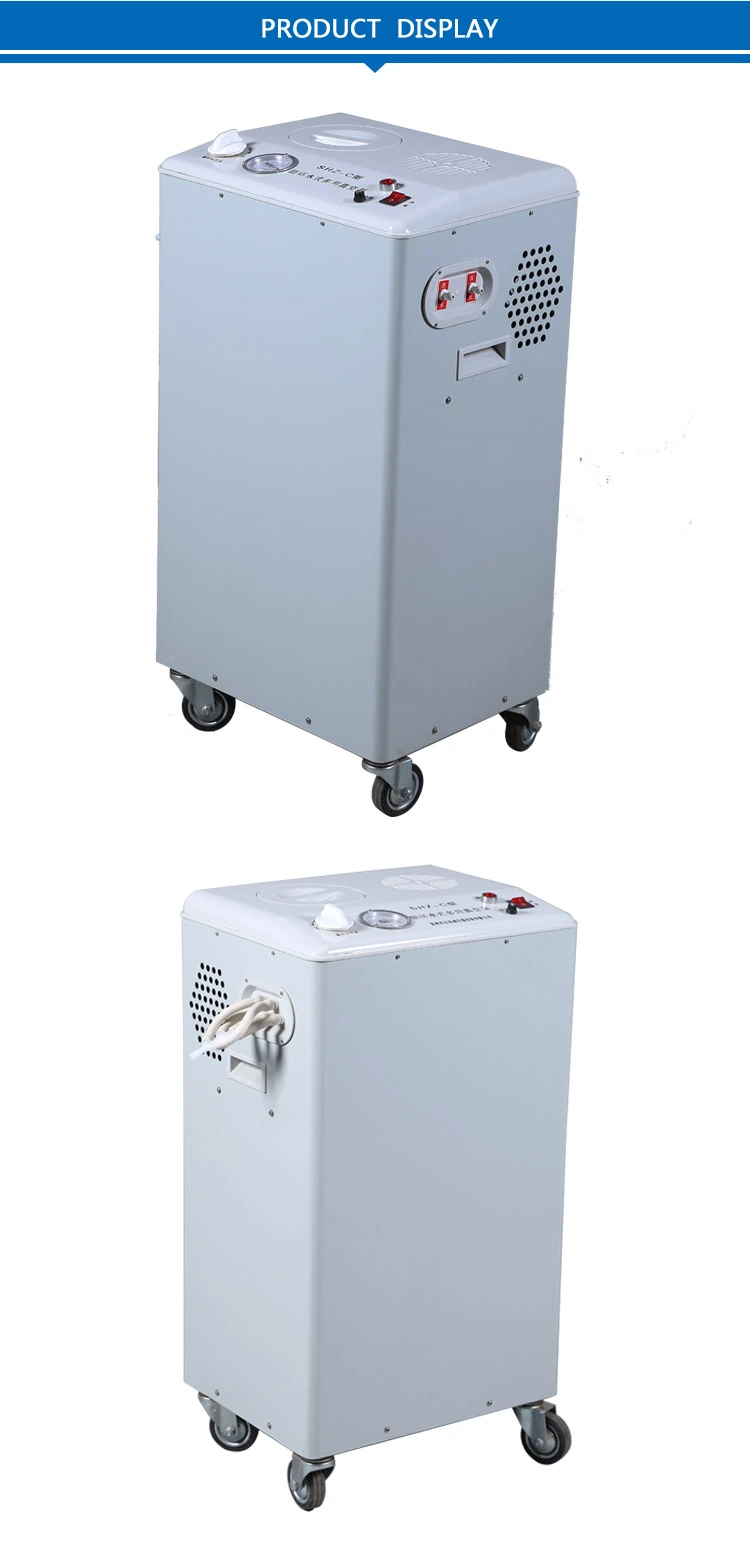

SHZ-95B

circulating water aspirator vacuum pump

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories


FAQ:

1. What are the models of SHZ series vertical circulating water vacuum pumps?

SHZ-C (three taps), SHZ-C (five taps), SHZ-95B.



2. Why is there splashes in the water tank of the circulating water vacuum pump?

The drain direction of the filter pipe is incorrect or the water level is too low.



3. What are the common faults of circulating water vacuum pumps and how to eliminate them?

Generally, the circulating water vacuum pump is broken in these three places: the motor, the vacuum gauge, and the recoil piston. If there is any problem, please contact the after-sales service.



4. What should I do if the circulating water vacuum pump has no vacuum or the vacuum gauge is inaccurate?

Check whether the voltage is stable, clean the internal dirt or replace the new bottle, clean the valve core, replace the impeller, throw out the water in the meter, return the meter needle to zero or replace the new meter, clean the pipeline or replace the new tube.


Model

SHZ-C

SHZ-C

SHZ-95B

    Remark

Power(W)

370

Equipped with 10L, 20L, 50L glass reactor or rotary evaporator. The vacuum degree is better when the water temperature is between 4 and 10

 Voltage(V/Hz)

220/50

Flow(L/min)

80

 Body Material

1cr18

polypropylene

Anti-corrosive

Lift(m)

12

Max. Vacuum(Mpa)

0.098

 Sucking rate for single tap (L/min)

10

Quantity of tap(Pcs)

5

3

5

Tank capacity(L)

50

 Dimension(mm)

450*340*870

450*340*840

Weight(kg)

37

Security performance

check-valve
