SHZ-D(Ⅲ) circulating water vacuum pump

SHZ-D(Ⅲ) circulating water vacuum pump

ZZKD sells SHZ-D(Ⅲ) circulating water vacuum pump, which is small in size, light in weight, beautiful in appearance and cheap in price.

Feature:
Circulating water vacuum pump is a kind of laboratory vacuum generator that uses water jet to generate vacuum. Provide vacuum conditions for evaporation, distillation, crystallization, drying, sublimation, filtration and pressure reduction, and degassing.


Advantage:

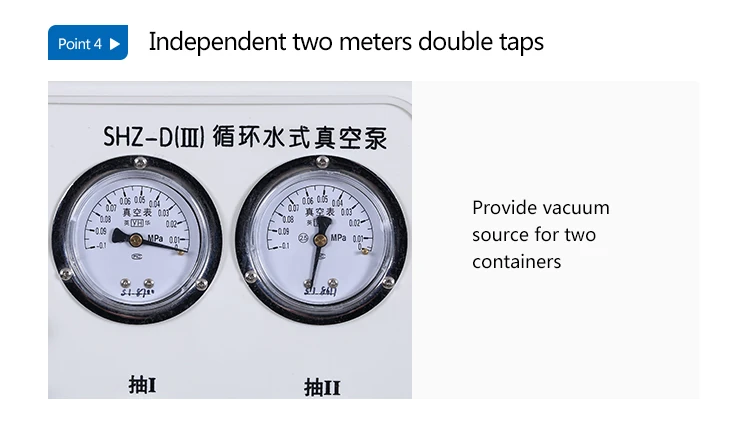

1. It adopts double taps or four taps, which can be used alone or in parallel, equipped with two or four vacuum gauges.

2. There is an ice hole for adding ice when the water temperature is too high and the vacuum is lowered.

3. Recycle water to save water resources.

4. Reasonable design, compact structure, and safe packaging.

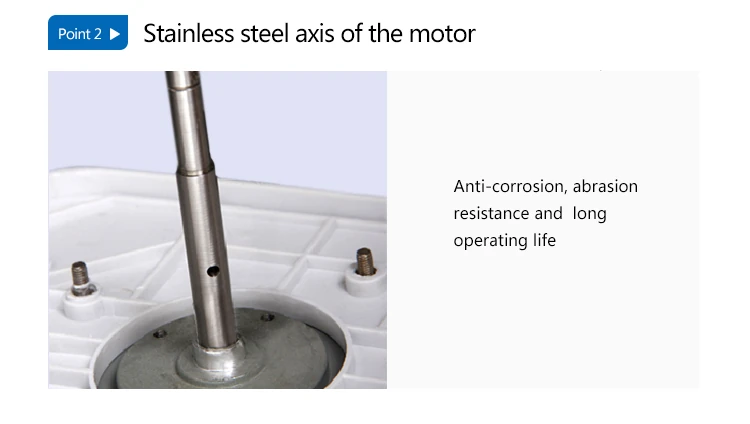

5. The movement is made of stainless steel and anti-corrosion materials.

6. A vacuum degree regulating valve can be installed according to user needs.

SHZ-D(Ⅲ)

circulating water aspirator vacuum pump

SHZ-D(Ⅲ)

circulating water aspirator vacuum pump

SHZ-D(Ⅲ)

circulating water aspirator vacuum pump for sale

circulating water aspirator vacuum pump

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories


FAQ:
1. What are the models of SHZ-D series circulating water vacuum pump?

SHZ-D(Ⅲ) and SHZ-D(Ⅲ) four tap.



2. What should I do if the circulating water vacuum pump motor does not work?

Replace with a new fuse, replace with a new capacitor with the same capacity and voltage as the original, replace with a new motor, replace with a new bearing, clean up debris, correct the position of the impeller, weld firmly, and tighten the line card.



3. What should I do if the circulating water vacuum pump leaks?

Replace the water tank or sealing ring, and tighten the water nozzle.



4. What are the specific operation methods of circulating water vacuum pumps?

Add water, repeat the machine to stop adding water, and change the water at least once a week. Connect the equipment that needs to be vacuumed to the exhaust nozzle, turn off the cycle switch, turn on the power, and turn on the power switch to start the vacuum operation. Connect the drain hose to the water source (tap water), and the overflow nozzle as a drain outlet. Properly control the amount of tap water to keep the water temperature in the water tank from rising and stabilize the vacuum.


Model

SHZ-D()

SHZ-D()four-meter, four tap

Remark

The machine Performance

Power(W)

180

370

Can equipped with 2L, 5L glass reactor or rotary evaporator, The vacuum is better when the water temperature is between 4 and 10

Voltage(V/Hz)

220/50

Flow(L/min)

60

Lift(m)

8

Body material

Anti-corrosion/1Cr18

Anti-corrosion

The machine performance

 Max. pressure (M Pa)

0.098

Sucking rate for single tap(L/min)

10

Quantity of tap (Pcs)

2

4

Tank capacity(L)

15

Dimension(mm)

400*280*420

Weight(kg)

15

Ultimate vacuum(kpa)

26

Security performance

Anti~corrosion, counter~current prevent valve
