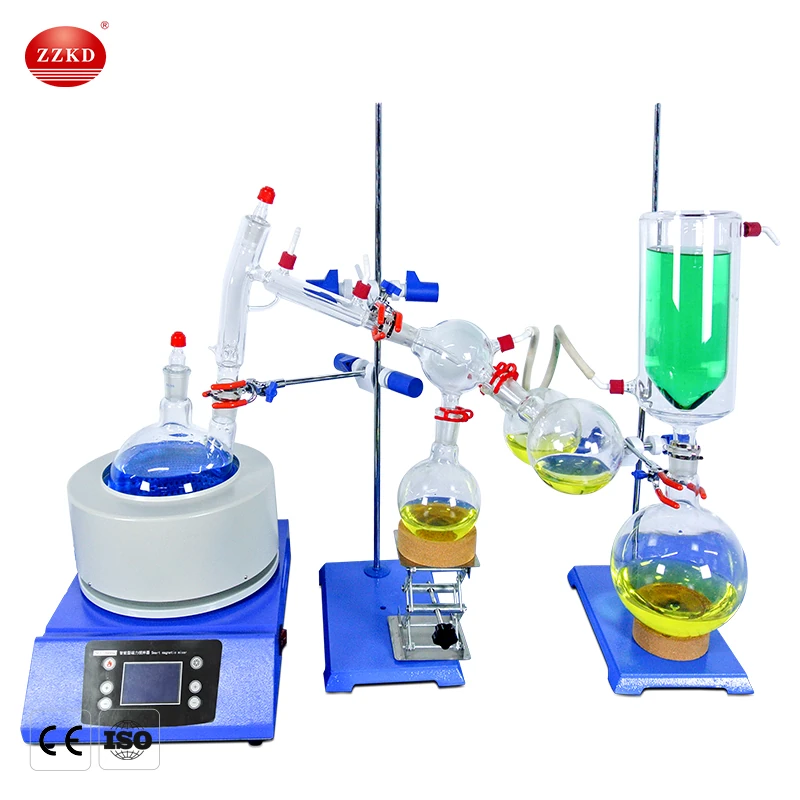

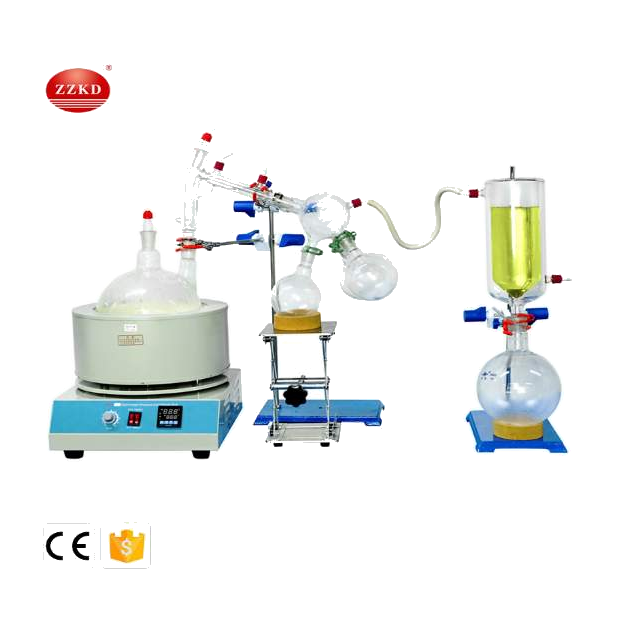

SPD-2L short path distillation

SPD-2L short path distillation

ZZKD sells a complete set of SPD-2L mini short-path distillation equipment, which is widely used in pharmaceutical, laboratory fractionation and purification, food and beverage, essential oil and other industries.


The SPD-2L short-path distillation kit is made of borosilicate glass and stainless steel, which has good corrosion resistance. As a laboratory distillation equipment, it has small size, high evaporation rate and easy operation.



1. The glass parts are made of high-quality borosilicate glass.

2. The metal parts are all made of 304 stainless steel.

3. Flange connection between interfaces, good sealing.

4. Small footprint and easy operation.

5. The evaporation efficiency is high, and the reflux speed is high.

mini short path distillation kit
 2L short path distillation

short path distillation full kit

mini short path distillation kit

After sale:

Free maintenance for life.

Technical engineers can receive overseas training.

Remote technical consultation.

Video guide installation.

Free replacement of some accessories.

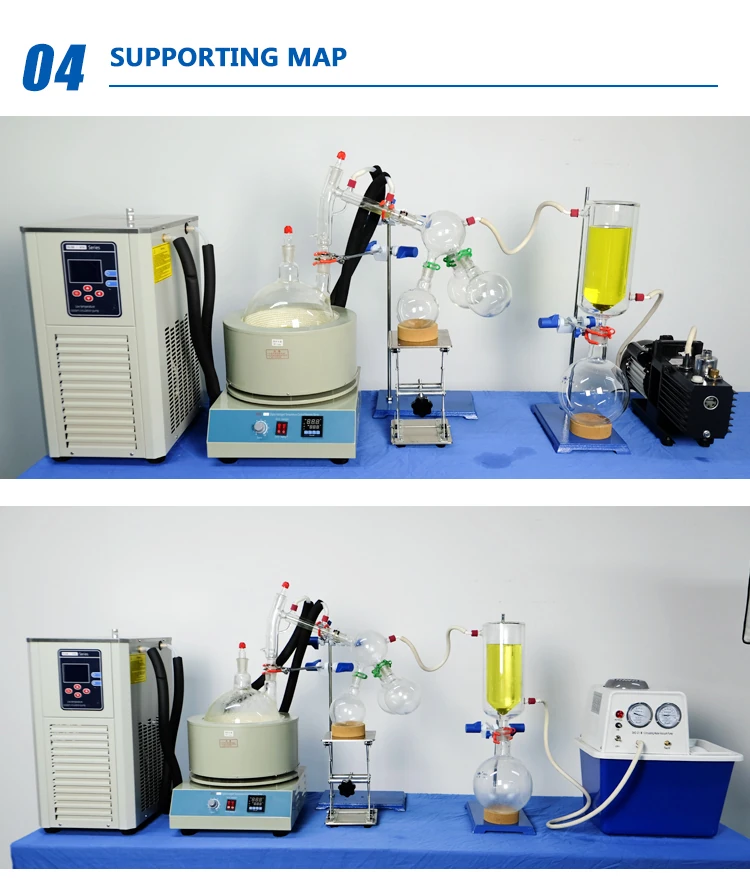

Grouped equipment:

Circulating water type multifunctional vacuum pump

Diaphragm Vacuum Pump

Rotary vane vacuum pump

Low temperature coolant circulation pump

Low temperature constant temperature reaction tank


1. What are the components of short path distillation?

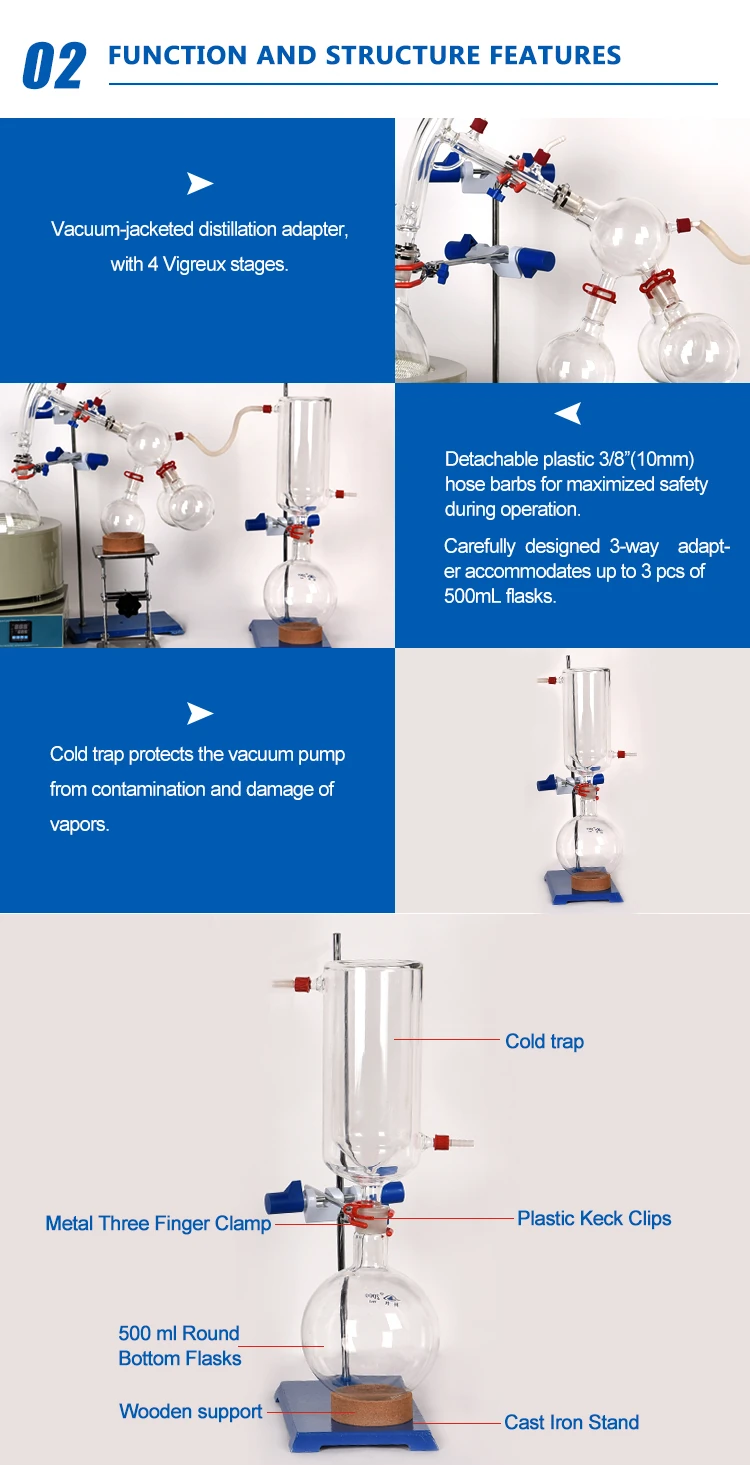

Heating part (electric heating mantle), evaporating flask, distillation elbow, four-neck flask, receiving flask, cold well.


2. What is the function of the short-path distillation cold well?

Filter some gases, liquids and impurities to prevent water vapor from entering and rust on the inner wall.


3. What is the role of short path distillation?

The material is distilled and extracted under vacuum conditions.


4. What are the types of film wipers for short-path distillation and how to choose?

Rolling film type, sliding film scraping type, hinge scraping film type, suitable film scraper can be selected according to the viscosity and processing properties of the material.

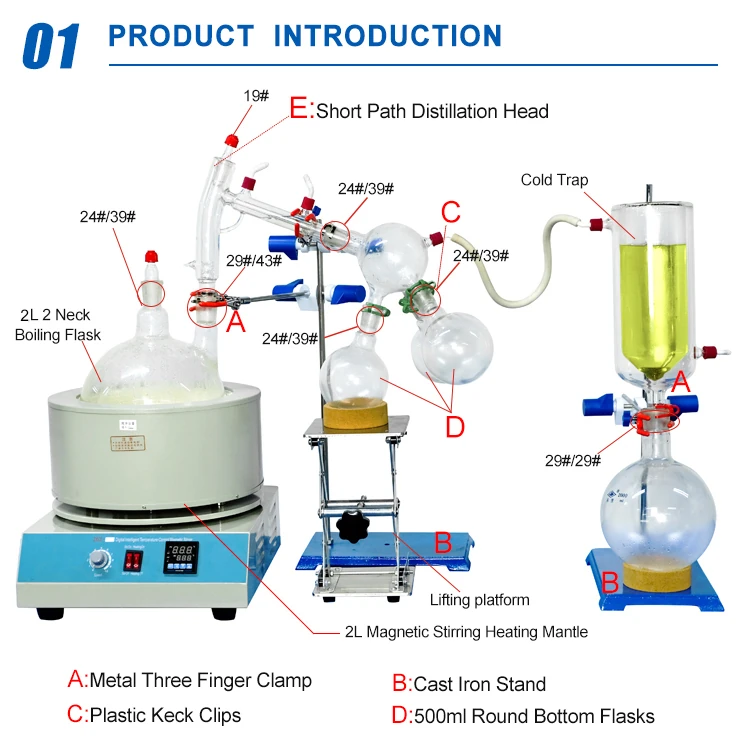

Parts name

Parts number

2L short path distillation

2000 ml Digital Heating Mantle


2000 ml 2 Neck Boiling Flask


Short Path Distillation Head


Cow Receiver


500 ml Round Bottom Flasks


Plastic Keck Clips


Cast Iron Stand


Metal Three Finger Clamp




Please leave your contact information, we will arrange the business staff to contact you as soon as we see the message.
