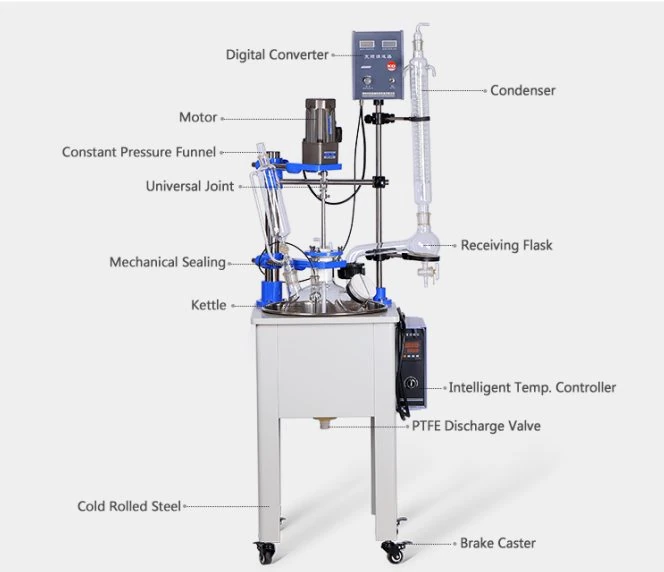

What are the parts of the glass reactor vessel?
We specialize in distillation and extraction equipment. Glass reactor is one of our main products, including: 2L glass reactor, 10L glass reactor, 50L glass reactor, 100L jacketed glass reactor, etc.
1.Motor: The glass reactor uses a low-speed power-increasing motor and a reducer to ensure that the equipment is stirred for a long time. In addition, according to user needs, choose to use explosion-proof motors or DC brushless motors.
2.Constant pressure dropping funnel: The glass reactor is equipped with a high-vacuum PTFE hand valve, which can ensure that the internal pressure remains constant and has the function of preventing back suction.
3.Universal joint: The universal joint has the function of variable angle for power transmission, connecting the motor and the stirring rod to make the stirring function of the glass reactor more stable.
4.Stirring rod: The glass reactor is made of polytetrafluoroethylene, which is resistant to high temperature, corrosion, and acid and alkali corrosion.
5.Mixing and sealing: Teflon components plus mechanical components double sealing, ceramic bearings.
6.Vacuum gauge: real-time monitoring of the pressure in the glass reactor.
7.Kettle cover: the design of seven openings is adopted, which are the agitator port, the temperature sensor port, the condenser connection ball mill port, the constant pressure funnel port, the solid feed port, the drain valve, and the liquid rubber port.
8.The upper and lower clamps of the kettle cover: play the role of fixing the kettle cover and the kettle body.
9.Vacuum interlayer: Play a good thermal insulation effect, so that the temperature of the glass reactor is not easy to lose.
10.Circulating liquid interlayer: By connecting low-temperature coolant circulation pumps, high and low temperature integrated machines, etc., equipment that can provide low temperature or high temperature circulating liquids to heat or cool the experimental materials inside the glass reactor.
11.Aluminum clamps and PTFE gaskets: play the function of fixing the discharge valve and have good sealing properties.
12.No dead angle discharge valve: make the discharge work clean and thorough, and the detachable design is convenient for the discharge of solids and particles as well as experimental materials with high viscosity.
13.Drain valve: protection can prevent accidental injury during the rotation of the reactor, and improve the safety of the glass reactor.
14.Condenser vacuum suction port: Decompress the condenser by connecting a vacuum pump to speed up the condensation efficiency of the condenser.
15.Snake condenser: The double-layer coil design increases the contact area between the condenser and the gaseous material and improves the condensation efficiency.
16.Silicone fixing ring: play a role in fixing the condenser.
17.Liquid separator: used to separate liquid from liquid.
18.Drain valve: control the discharge of materials in the dispenser.
19.Temperature and rotation speed dual display panel: The control panel of the whole machine, the temperature and rotation speed will be displayed on the screen in digital form, which is simple and quick to operate.
20.Vacuum interlayer pumping port: used to pump the vacuum interlayer.
21.Kettle body support pipe fittings: used to fix and support the reactor body.
22.Circulating fluid interlayer thermal insulation buffer tube: The material is stainless steel corrugated tube outsourcing high temperature resistant silica gel thermal insulation cotton, which has good thermal insulation performance.
23.Stainless steel support frame: All 304 stainless steel frame has better corrosion resistance and heat resistance.
24.Braked casters: easy to move, more flexible to use.
