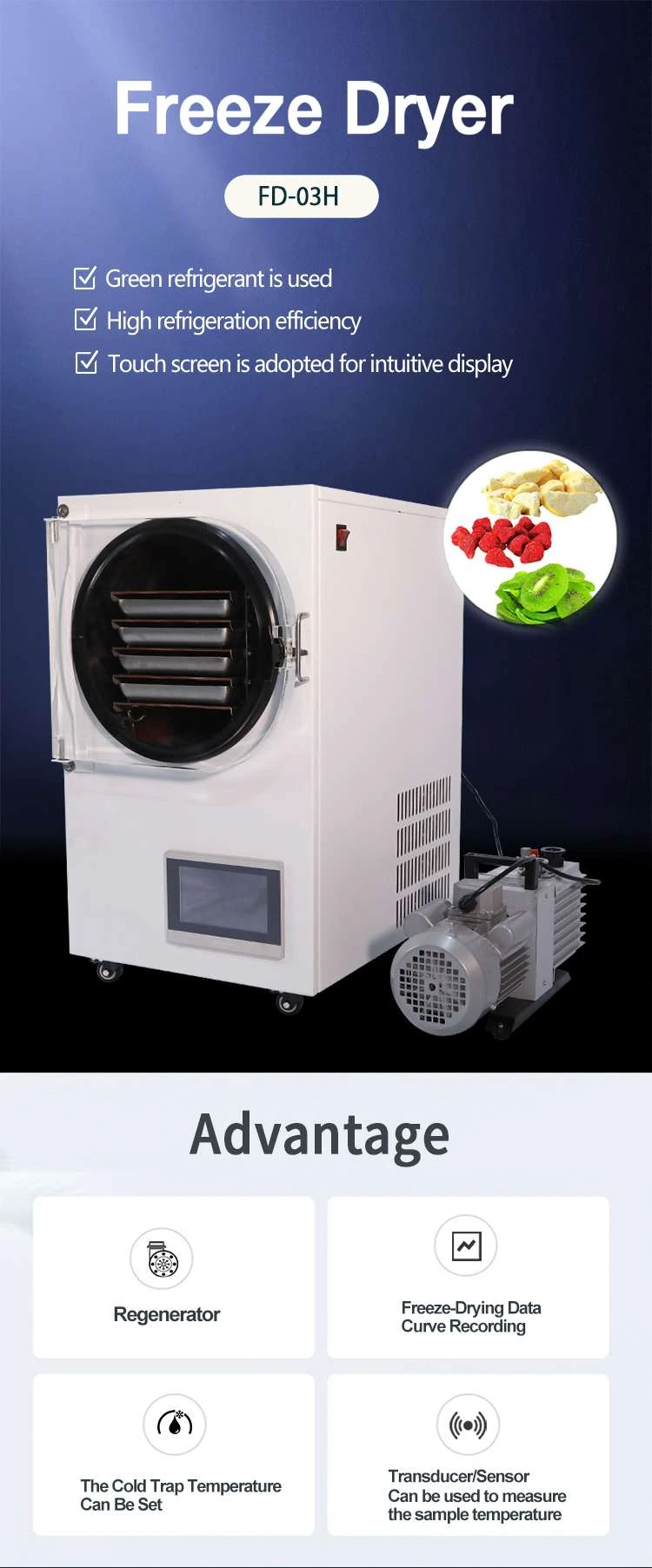

FD-03H freeze dryer

FD-03H freeze dryer

Home lab freeze dryer is a mini vacuum freeze dryer. We are a freeze dryer manufacturer in China. We sell freeze dryers, which are very suitable for home use.

Advantages of freeze dryer:

Vacuum freeze dryer is widely used in medicine, pharmacy, biological research, chemical industry, food and other fields. The freeze-dried products are easy to be stored for a long time. After adding water, they can return to the state before freeze-drying and maintain the original biochemical characteristics.

Features of freeze dryer:

1. Beautiful and fashionable, small size

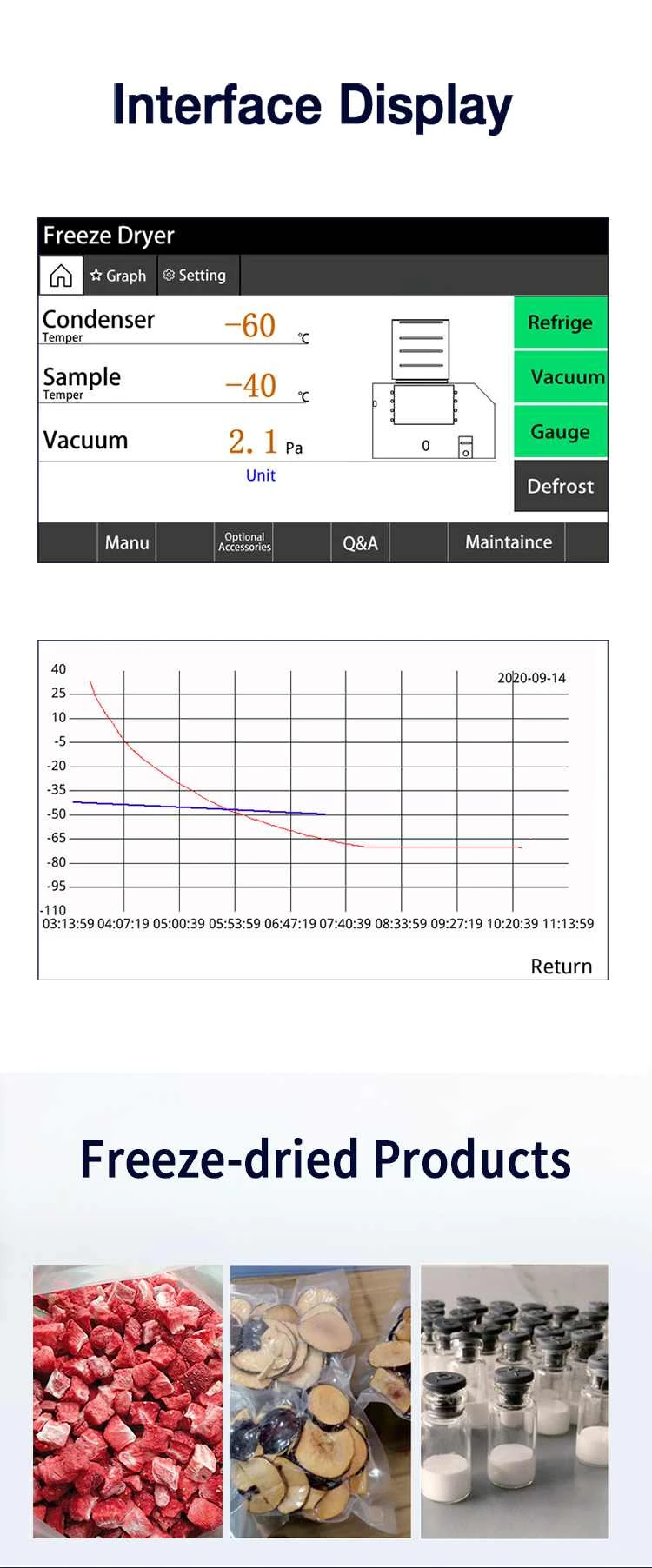

2. Touch screen operation, one key start, automatic control of freeze-drying process, easy and convenient

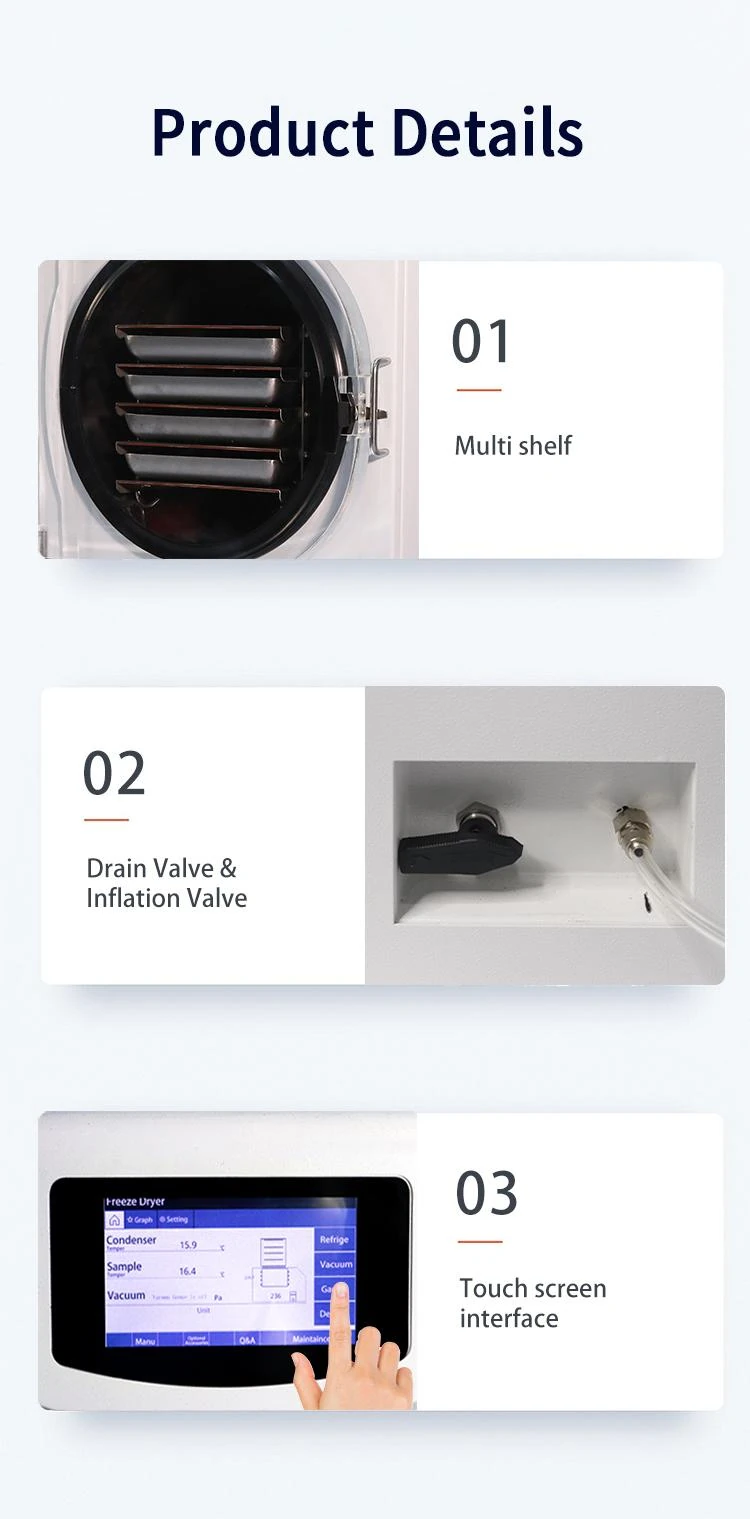

3. The square tray is not easy to deform, easy to operate and clean

4. High temperature control precision, temperature difference ≤ 1 ℃, even drying effect

5. Low noise, high quality and high performance

6. Advanced system, low running current and low energy consumption

7. Food grade stainless steel 304 food tray and liner, safe and guaranteed

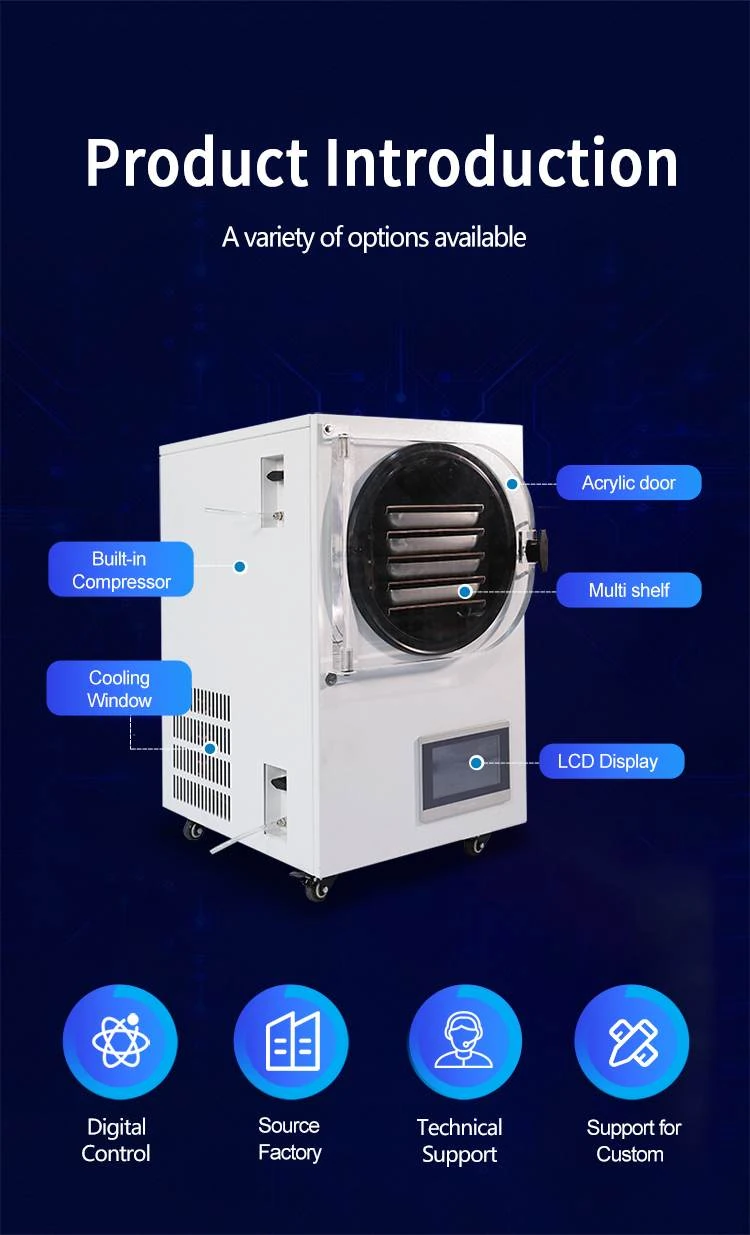

8. Transparent plexiglass door for direct observation of food processing

freeze dryer machine

freeze dryer for sale

home freeze dryer

lab freeze dryer

mini freeze dryer

freeze dryer for sale

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories


The operating conditions of the freeze dryer are as follows:

Ambient temperature under normal working conditions: 10 ℃25 ℃

Relative humidity:   ≤70%

Power supply voltage: single phase 110V ± 10% 60Hz

The working environment should be horizontal, without conductive dust, explosive, corrosive gas and strong electromagnetic field interference.

Transportation and storage conditions: ambient temperature: - 35 ℃ ~ 50 ℃

Relative humidity: ≤ 93%

The storage environment should be well ventilated without corrosive gas.


What should we pay attention to when using freeze dryer?

1. Do not freeze dry corrosive materials without special safety measures.

2. Adding attachments is not allowed. Do not use inferior containers. Because it's in danger of exploding.

3. Do not use the freeze dryer in the area with explosion risk.

4. Do not move or compress the freeze dryer. Do not lean on or stay on it when working.

5. Do not place potential dangerous goods, such as liquid bottles, near the freeze dryer.

6. Do not dry samples that will react during freeze-drying.

7. Do not freeze dry explosives or flammable samples.

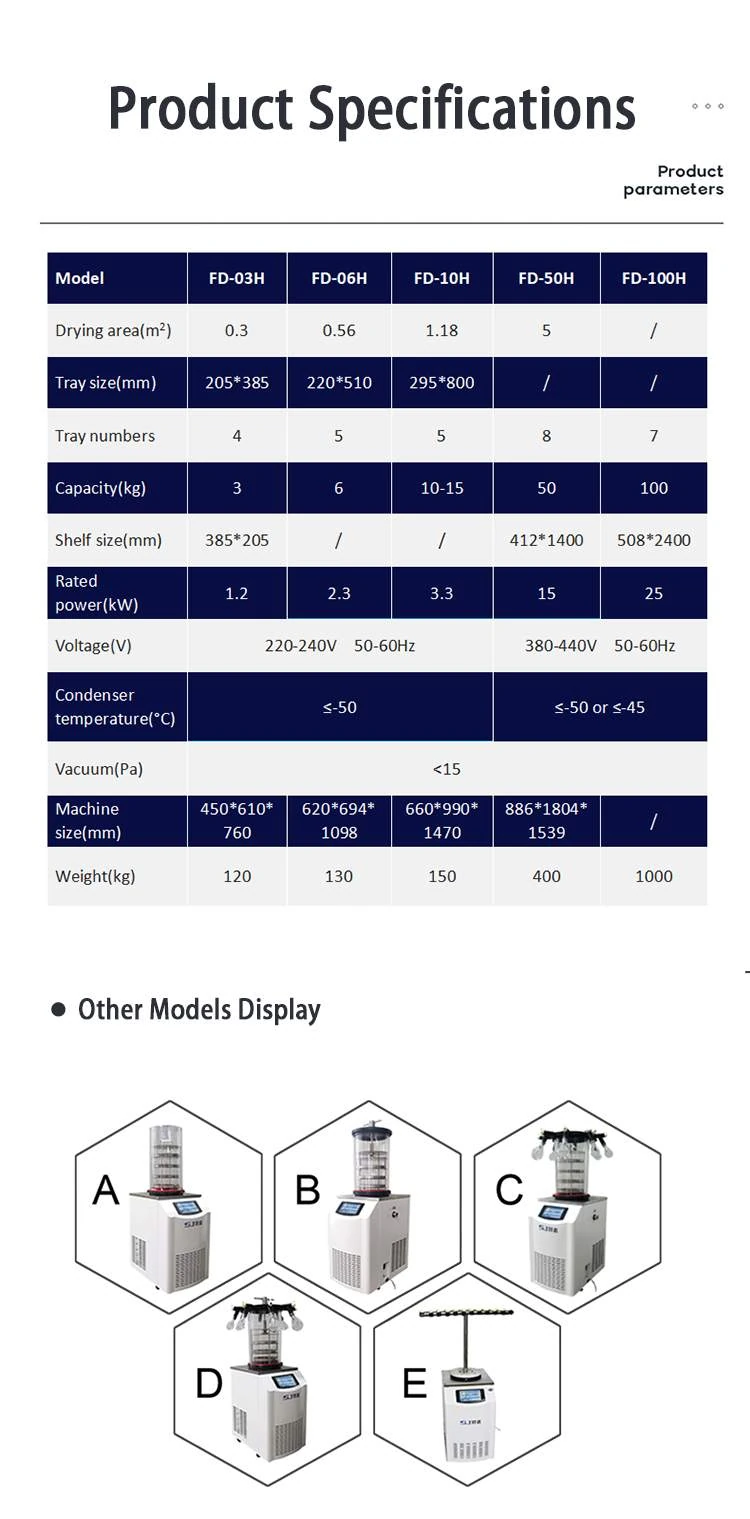

Energy consumption (w)


W*D*H mm


FD-03H Freeze dryer



Condenser temperature≤-35℃;

Drying temperature-30~+60℃

Space between trays: 45mm;

Effective area: 0.4;

Disc dimension:

200mm*425mm, 4 pcs


Ice capacity4-6KG

Please leave your contact information, we will arrange the business staff to contact you as soon as we see the message.
