Advantage:
High temperature constant temperature circulating water and oil bath pots are widely used for drying, concentration, distillation, dipping chemical reagents, dipping medicines and biological products, and can also be used for constant temperature heating in water baths and other temperature tests. They are biological, genetic, viral, aquatic, environmental protection, An essential tool for education and scientific research in medicine, health, biochemical laboratories, and analysis rooms.
Features:
1. Use 304 stainless steel as the inner tank. The shell is made of high-quality plates and electrostatic spraying.
2. The oil bath shell and inner tank are protected by temperature insulation cotton, which has excellent heat preservation effect.

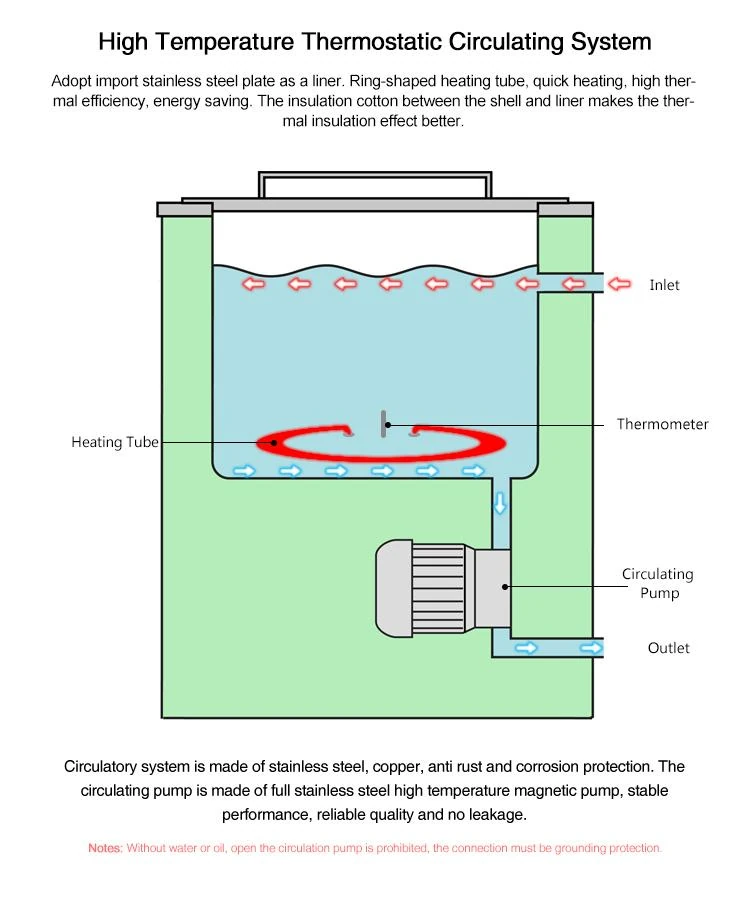

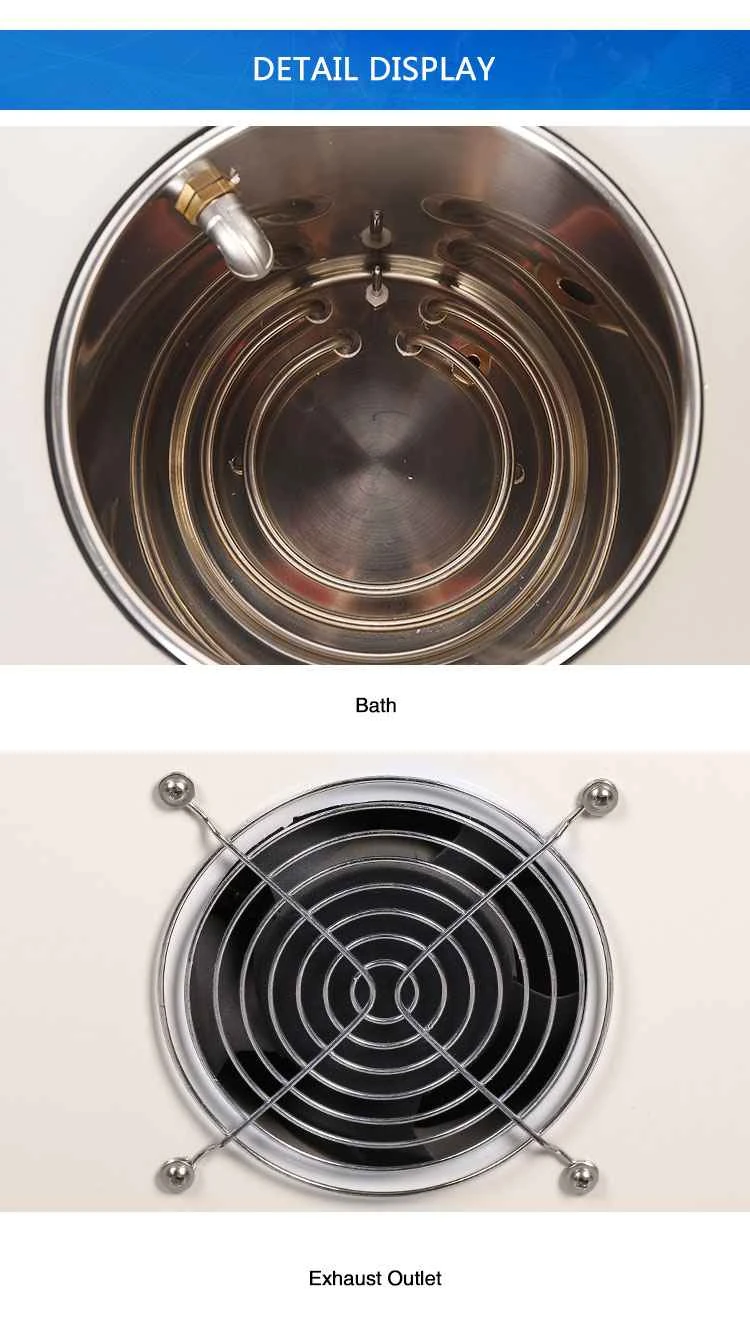

3. The electric heating tube will be in the middle of the oil, heating fast, high thermal efficiency, low power consumption, electronic constant temperature.
4. The circulating water bath/oil bath can be cooled by forced air to achieve rapid cooling.

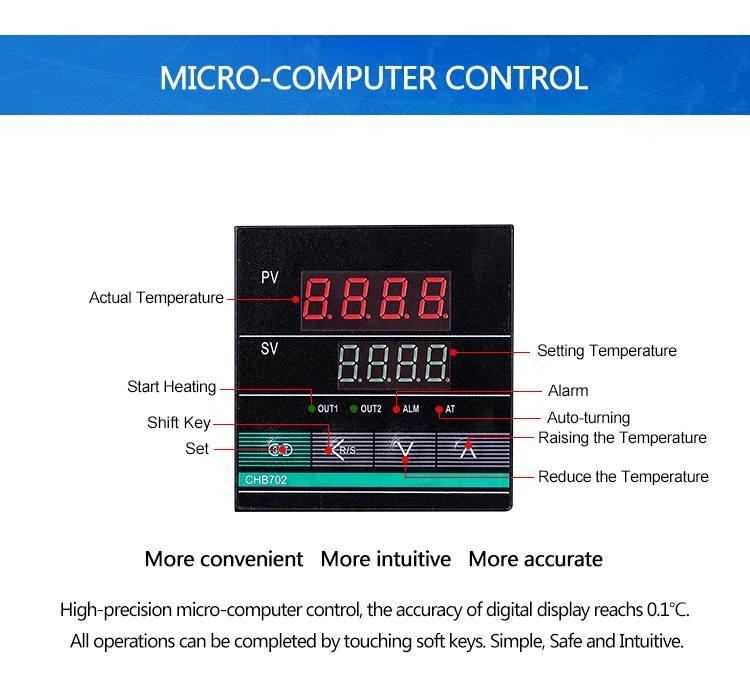

5. The digital display adopts P.I.D control, which has the advantages of precise temperature control and small temperature shock.
6. The circulation system is made of stainless steel, which has the characteristics of anti-rust and anti-corrosion.
After sale:
Free maintenance for life
Technical engineers can receive overseas training
Remote technical consultation
Video guide installation
Free replacement of some accessories
FAQ:
1. Instructions for use of high temperature constant temperature circulating water and oil bath
When using high temperature constant temperature circulating water or oil bath, you must first add oil to the pot, and then turn on the power. The digital temperature controller displays the actual temperature, adjust the knob switch, and observe the reading to the desired set temperature value. When the set temperature value is When the oil temperature exceeds the oil temperature, the heating indicator light is on, indicating that the preheater has started to work. When the oil temperature reaches your desired temperature, the constant temperature indicator light is on and the heating indicator light is off. It should be noted that the electric heating tube cannot be exposed to the oil surface to avoid burning the electric heating tube , Resulting in leakage phenomenon.
2. What are the uses of high temperature constant temperature circulating water and oil bath?

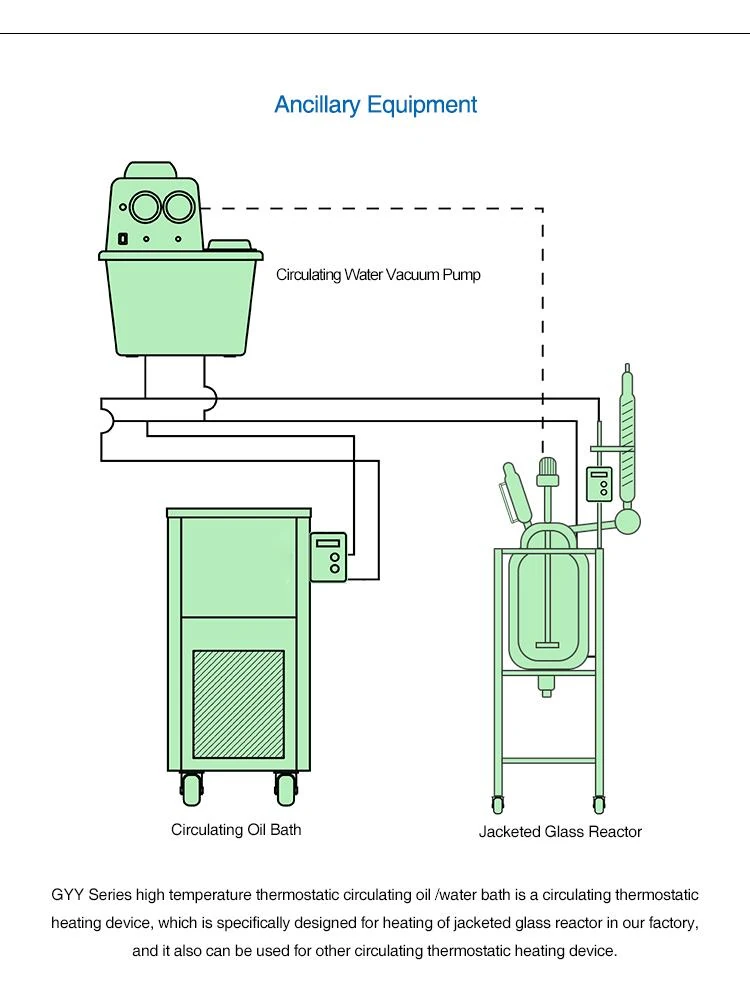

GYY series high temperature constant temperature circulating water and oil bath is a circulating and constant temperature heating device specially designed and produced for the company's double glass reactor. It has compact and reasonable structure, safe and convenient use, accurate temperature control, and controllable output flow. Features such as energy saving. It can conveniently provide a circulating constant temperature heat source for the double-layer glass reactor, and can also be used in other devices that require circulating constant temperature heating.
3. Maintenance of high temperature constant temperature circulating water and oil bath
In order to improve your quality of use, please use (320 high temperature heat transfer oil).
Maintain the oil level during use and change the oil regularly. When changing the oil, drain all the old oil, flush the inside with new oil, and then add new oil to prevent impurities from entering during use, so as not to affect the quality of the oil.
Model | 5L | 10L | 20L | 30L | 50L | 80L | 100L | |
Function | Liquid storage volume (L) | 5 | 10 | 20 | 30 | 50 | 80 | 100 |
No-load maximum temperature(℃) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
Heating power (kW) | 2.8 | 1.5 | 2 | 2.8 | 2.8 | 3 | ||
Cycling performance | Power | 220V/50HZ 380V/50HZ(50L/80L) | ||||||
Pressure | 1.45Mpa | |||||||
Cycle way | Sealed magnetic pump cycles | |||||||
Flow rate(L/min) | 15-20 | 20-25 | ||||||
Tempe control performance | Temp control range (℃) | Water bath：RT～99; Oil bath：RT～250 | ||||||
Temperature error | ≤2.50% | |||||||
Working condition | Power | 380/220V 50Hz | ||||||
Humidity | 60% | |||||||
HTF viscosity | Below 500C℃·S·t | |||||||
Currents（A） | 10 | |||||||
Optional Configuration | Explosion-proof motors and electrical | |||||||
The number of heating tube | 1 | 2 | 3 | |||||
Liner Size (cm) | 25*22 | 25*25 | 30*30 | 35*30 | 45*35 | 50*45 | 55*50 | |
Overall dimensions (cm) | 60*40*68 | 60*45*70 | 63*48*70 | 70*54*85 | 75*58*85 | 86*68*90 | 90*70*95 | |
Weight (kg) | 35 | 45 | 60 | 60 | 75 | 90 | 105 | |
