5L 10L 20L 50L Rotary Evaporator

5L 10L 20L 50L Rotary Evaporator

R series rotary evaporator is a rotary evaporator independently developed by our company. The volume of the spinner bottle is 5L, 10L, 20L, 50L. The capacity can be customized, the price is cheap, the operation is simple, and the quality is stable.

R-1005 R-1010 R-1020 R-1050 are 5L rotary evaporator, 10L rotary evaporator, 20L rotary evaporator, 50L rotary evaporator. These four rotary evaporators are our R series rotary evaporators. The company independently researches and develops, the capacity can be customized, the price is cheap, the operation is simple, the quality is stable, and it is economical and practical. Today we will introduce the 5L 10L 20L 50L rotary evaporator in detail.

5l rotary evaporator

Operation steps of 5L 10L 20L 50L rotary evaporator:


1. Preparation:

·After assembling the 5L 10L 20L 50L rotary evaporator, after connecting the cryopump and vacuum pump. (The vacuum tube of the vacuum pump is connected to the interface in the middle of the rotary evaporator condenser, and the silicone tube of the cryopump is connected to the interfaces on both sides of the condenser)

· Turn on the cryopump (cycle first, then refrigeration).

·Turn on the vacuum pump, start vacuuming, and pay attention to the reading of the vacuum gauge. When the vacuum gauge maintains the maximum vacuum for a period of time, it indicates that the equipment is well sealed and can start feeding.

2. Feeding:

Feeding method: first pump the rotary evaporator into a negative pressure state, connect the feeding valve with the sample to be added with a hose, open the valve of the feeding valve, the sample will be directly pumped into the rotary bottle, and close the feeding after the feeding is completed valve valve. It is recommended to add no more than one-half of the spinner bottle each time.

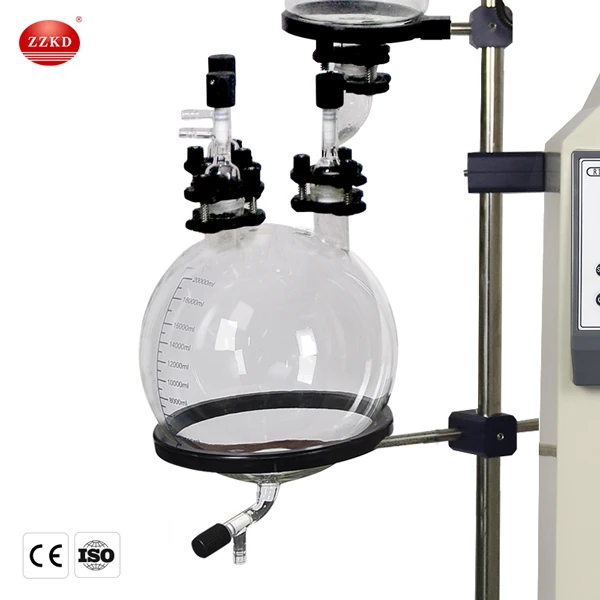

20l rotary evaporator

3. Turn on the machine, adjust the height and heat the heating bath:

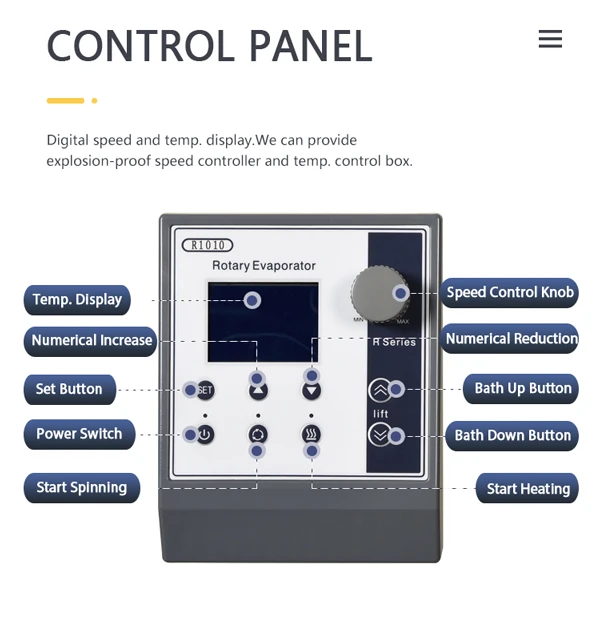

Power on: Turn on the power, turn on the "Power Switch" on the left side of the host, and the device will start

·Adjust the height of the heating bath: adjust the height of the heating bath by pressing the upper triangle and the lower triangle on the operation panel, so that the rotating bottle is placed in the water bath. Press the triangle heating pot to descend, and press the upper triangle heating pot to rise.

·Pour pure water into the bath, submerge 1/2 of the spinner bottle, just don't overflow.

· Rotating bottle rotation:

Speed setting: Press the button to enter the setting interface, the first line of the LCD screen displays the temperature number flashes, press it again and the second line of speed flashes, turn the knob to adjust the speed value, turn it clockwise to increase the value, and turn it counterclockwise The value decreases. After setting the desired speed, wait for a few seconds, the flashing stops, and the set speed is automatically saved.

Spin Start: Press the ON key to start spinning.

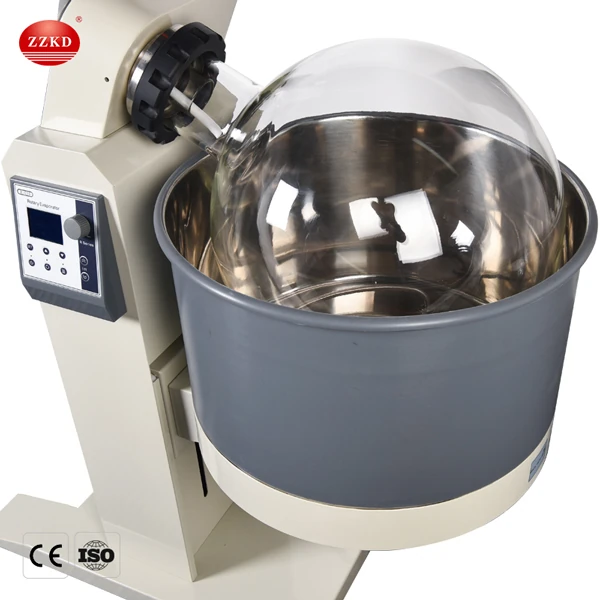

10l rotary evaporator

· Heating bath:

Temperature setting: Press the control button to enter the setting interface, the first line of the LCD screen displays the temperature number flashing, turn the knob to adjust the temperature value, turn the knob clockwise to increase the value, and turn it counterclockwise to decrease the value. After setting to the desired temperature, wait for a few seconds, the flashing stops, and the set temperature is automatically saved.

·Heating start: Turn on the heating bath.

·Feeding without stopping. After the rotary evaporator works normally for a period of time, the raw material solution in the rotary bottle may have been evaporated, but there is still a lot of space in the receiving bottle. When you want to evaporate some raw material solution but do not want to start vacuuming again, please repeat The charging method of step 3.

4. Feeding:

When discharging R-1005 R-1010 R-1020 R-1050, first close the condenser connector valve, open the exhaust valve on the recovery bottle to reduce the pressure in the recovery bottle, and then open the discharge valve to discharge.

5. Downtime:

·Stop the rotation of the rotary bottle, and adjust the lift so that the rotary bottle leaves the water bath.

·Open the feed pipe plug to release the internal vacuum.

·Turn off the pressure reducing device.

·If you do not continue to add the sample, please also turn off the cooling water circulation device and the water bath. (*After the concentration is over, the water bath or spinner bottle will not cool down immediately, it is still high temperature, be careful of burns!)

·Removal of the rotary bottle: insert a Phillips screwdriver into the rotary locking hole of the machine head (leftward direction) to fix the rotary shaft, use a bottle ejector to loosen the rotary bottle fixing nut, and remove the rotary bottle.

50l rotary evaporator

6. Disposal after shutdown:

·When not in use for a long time, please turn off the power switch and disconnect the power supply.


R-1005 R-1010 R-1020 R-1050 rotary evaporator supporting equipment:


R-1005 rotary evaporator: DLSB-20/30 low temperature cooling liquid circulating pump and SHZ-C circulating water vacuum pump.

R-1010 rotary evaporator: DLSB-20/30 low temperature cooling liquid circulating pump and SHZ-C circulating water vacuum pump.

R-1020 rotary evaporator: DLSB-30/30 low temperature cooling liquid circulating pump and SHZ-C circulating water vacuum pump.

R-1050 rotary evaporator: DLSB-50/30 low temperature cooling liquid circulating pump and SHZ-C circulating water vacuum pump.


5L 10L 20L 50L rotary evaporator after sales:


Lifetime free maintenance.

Technical engineers can receive overseas training.

Remote technical consultation.

Video guide installation.

Free replacement of some accessories.


FAQ:


1. What is the working principle of the rotary evaporator?

Heating at constant temperature, rotating under negative pressure to form a film, and at the same time, the solvent is evaporated, condensed and recovered. It is especially suitable for the concentration, crystallization, separation and recovery of heat-sensitive materials.

2. What are the uses of the rotary evaporator?

It is generally used for separation, crystallization, drying, purification and other operations in biopharmaceutical, pharmaceutical, chemical, chemical and other industries.

3. What is the best ambient temperature for a rotary evaporator?

The optimum ambient temperature is 5-35°C.

4. What is the normal vacuum degree of the rotary evaporator?

The maximum vacuum degree is 399.9 (below 3mmHg)

5. What are the models of R series rotary evaporators?

There are four types of R series rotary evaporators: R-1005 R-1010 R-1020 R-1050, the corresponding sizes are 5L rotary evaporator, 10L rotary evaporator, 20L rotary evaporator and 50L rotary evaporator.


Mode

R1005

R1010

R1020

R1050

Optimum ambient temperature

5~35

Working power supply (V/Hz)

Single phase 220/60

Three phase 220-240V/380v/60Hz

Main engine speed control

Digital frequency conversion stepless speed regulation

Digital direct current stepless speed

Main engine speed (RPM)

10~140

20~130

20~110

Rotary electric machine (W)

40

Brushless 250

Temperature control ()

Digital display temperature control,room temperature -99

Maximum vacuum (Pa)

399.9(Below 3mmHg)

Rotating bottle (L)

Five

Ten

Twenty

Fifty

Flange size

Flange 50

Flange 125

Flange 125

Flange 125

Recovery bottle (L)

3

5

10

20

Condenser tube

Vertical double coil

Vertical main cold+cold side, high effeciency reflux condenser

Evaporation capacity (L/h)

The water is more than 2
The alcohol is more than 4

The water is more than 3. 2
The alcohol is more than 6.5

The water is more than 5
The alcohol is more than 11

The water is more than 9
The alcohol is more than 19

Water bath pot material

Stainless steel

Water bath pot size (mm)

Φ300×170

Φ350×220

Φ450×260

Φ550×320

Lifting function

Electric lift

Electric + hand lift

Lift stick (mm)

0~150

0~160

0~190

0~180

Whole power (KW)

2

3

4

4.0(220-240V)

Outline dimension (mm)

7650×400×1070

920×550×1700

1250×600×2100

1320×770×2340
