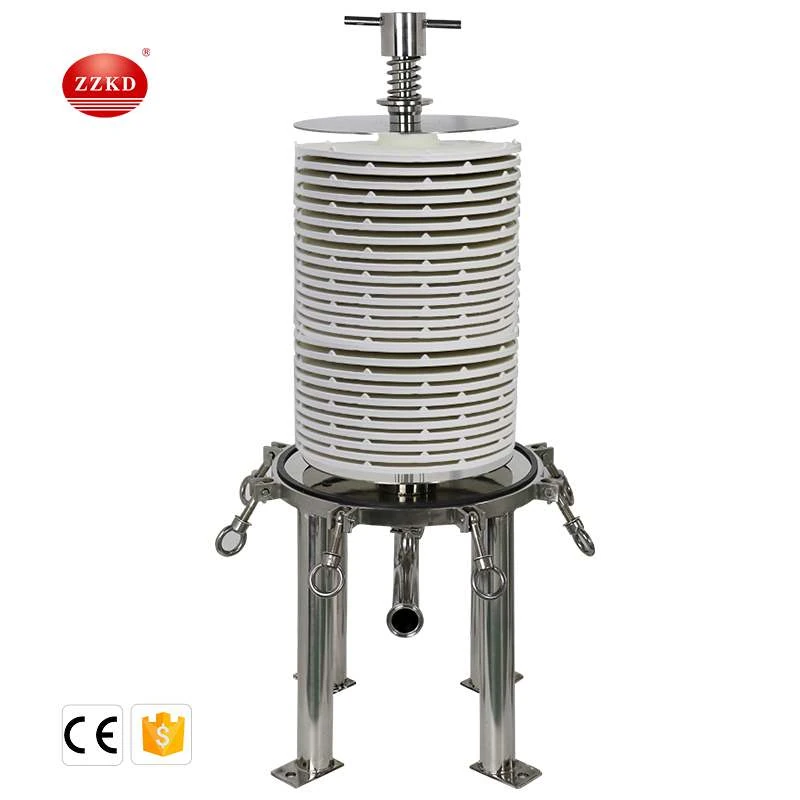

Lenticular depth filter hemp for sale
Features and advantages of lenticular filter:
1.The lenticular filter adopts a laminated cardboard filter element, which combines high-purity wood fiber and inorganic filter aid through a special process. Its internal crisscross three-dimensional spatial structure makes it a deep filter medium, which provides a good filtering effect. High dirt holding capacity and long service life.
2 The lenticular filter element combines multiple filter discs into a convenient and easy-to-install filter unit. The edge of each filter disc is individually sealed by an injection molding process to ensure the integrity of the entire filter element. This structure provides good stability to resist damage to the filter element caused by long-term use.
3.The production of cardboard utilizes advanced and highly automated production processes, and all raw materials have undergone strict quality control procedures to ensure uniform product quality and filtration performance.
Good retention effect:
The cellulose inside the filter material of the lenticular filter is interwoven to form a compact three-dimensional space structure, and as the depth increases, its pore size gradually decreases to form a gradually tightening structure, which can reduce the flow rate of solid particles during the filtration process and eventually be intercepted.
As an inorganic filter aid, diatomaceous earth has a natural porous structure inside, which also provides a good particle adsorption effect for the cardboard and increases the permeability of the cardboard.
There is a small amount of special synthetic resin in the composition of the cardboard, which can not only improve the wet strength of the cardboard, but also provide the cardboard with a positive charge. It can be said that the negatively charged cell debris, endotoxin, virus and other substances in the solution can be effectively adsorbed.
Outstanding use characteristics:
The cardboard composition uses high-purity bleached cellulose, which greatly reduces the level of ion precipitates and endotoxin content, making the series more suitable for use in high-purity fields such as biopharmaceuticals.
The innovative design and structure of the filter element effectively solves many shortcomings of the traditional plate and frame filter, such as leakage of material and liquid, large workload, and high investment cost. In addition, high-efficiency filter aids such as diatomaceous earth are added to the composition of the cardboard, which replaces the use of traditional cardboard frame filters that require pre-coated diatomaceous earth, which is more convenient and efficient.
Due to the three-dimensional structure of cellulose inside and the porous structure of diatomaceous earth, it has ultra-high dirt holding capacity and service life.
Application field
Grapes, beer, white wine, fruit juice, brine, edible oil, high fructose syrup, bottled water
Process fluid
Ink, paint, resin, varnish, perfume, fuel, silicone oil
bio-pharmacy
Blood products, animal serum, raw materials, vaccines, large infusions, small infusions, cell separation
chemicals
Column protection enzymes, surfactants, and catalyst retention

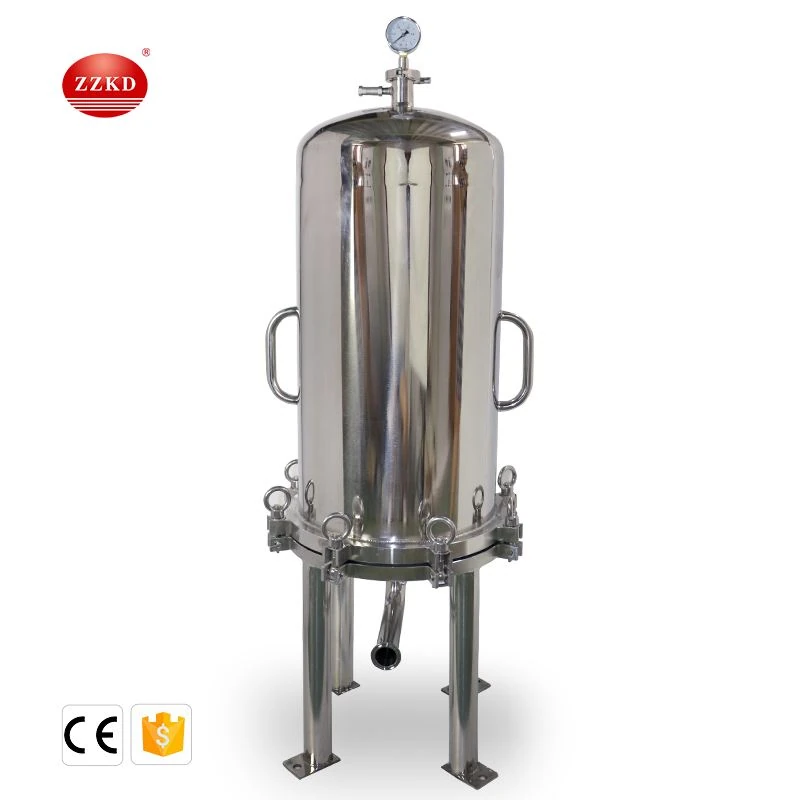

Parameters of lenticular filter
Shell:Stainless Steel 304 316L |
Pressure Gauge(option):Tri-clamp |
Vent/Drain Valve:304 316L |
Drain Valve(option):Tri-clamp |
Eye-bolt:Stainless Steel 304 |
Finish Type:Mechanical/electrolytic polishing |
Stabilizer Blade:304 |
Max Operating Pressure:0.6Mpa |
O-ring:EPDM,PTFE,Viton,Silicone |
Max Operating Temperature:150℃ |
Connection of Shell:Flange |
Disinfect:Online or Steam |
In-Outlet:Flange,Tri-clamp,Thread |
Sterilization:121℃/30min |
