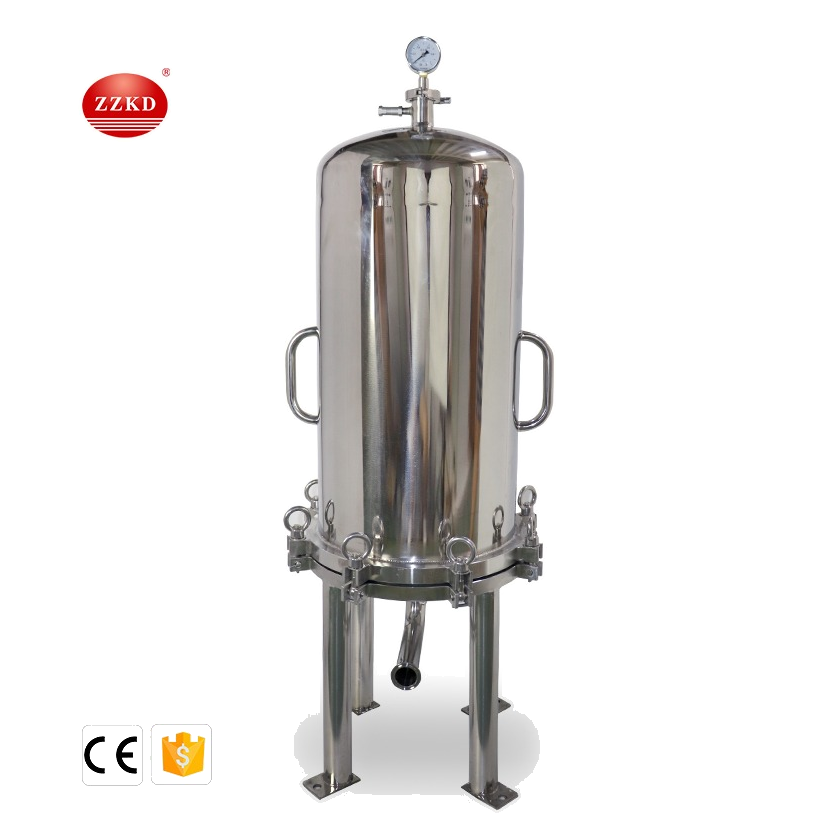

Lenticular filter machine

Lenticular filter machine

ZZKD sells lenticular filter, which is made of 304 stainless steel. Reasonable structure, good chemical resistance and long service life.


The lenticular filter is a new type of laminated filter, which can replace the diatomaceous earth filter and is used for the filtration, purification, clarification and purification of small impurities in various liquids. The structure is reasonable, there is no dead corner inside and the mirror surface is polished to ensure no residual liquid and easy to clean.


1. Easy to clean, the inlet/outlet can be equipped with a special drain valve, which is convenient for draining.

2. Easy to replace the filter element, reducing filter leakage.

3. The stainless steel pressure gauge can display the pressure value in the tank in real time.

4. The product is made of stainless steel, high temperature resistance, corrosion resistance, and durability.

5. The large cake filter is equipped with 4 filter cakes as standard, which can meet the filtering requirements of large flow.

6. Adopt bottom-in and bottom-out structure design, effectively avoid the turbulence of the material and liquid, and improve the filtration performance.

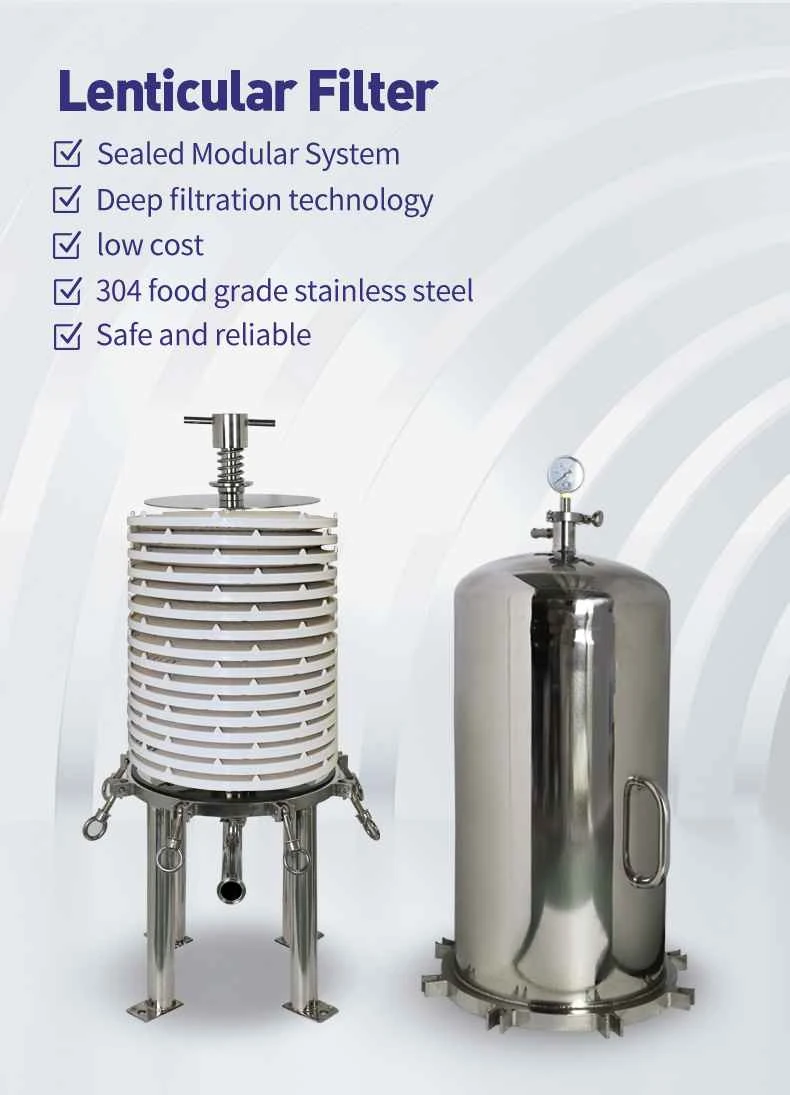

lenticular filter housing

lenticular filter beer

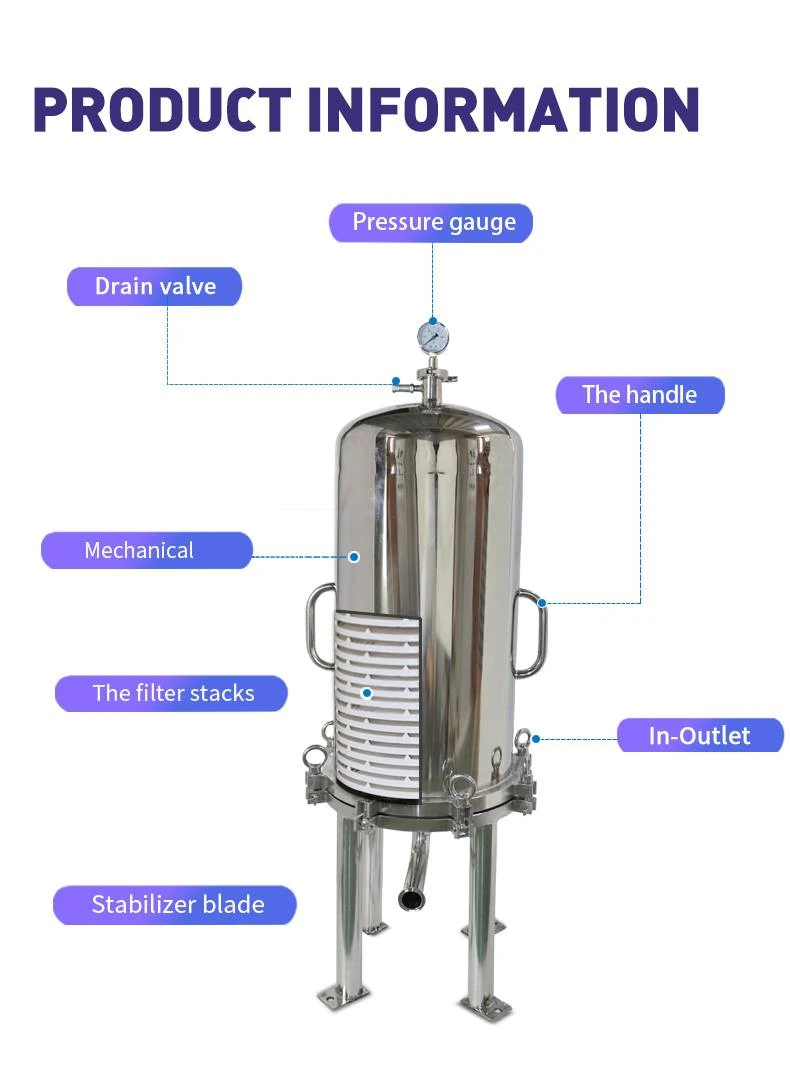

lenticular filter wine

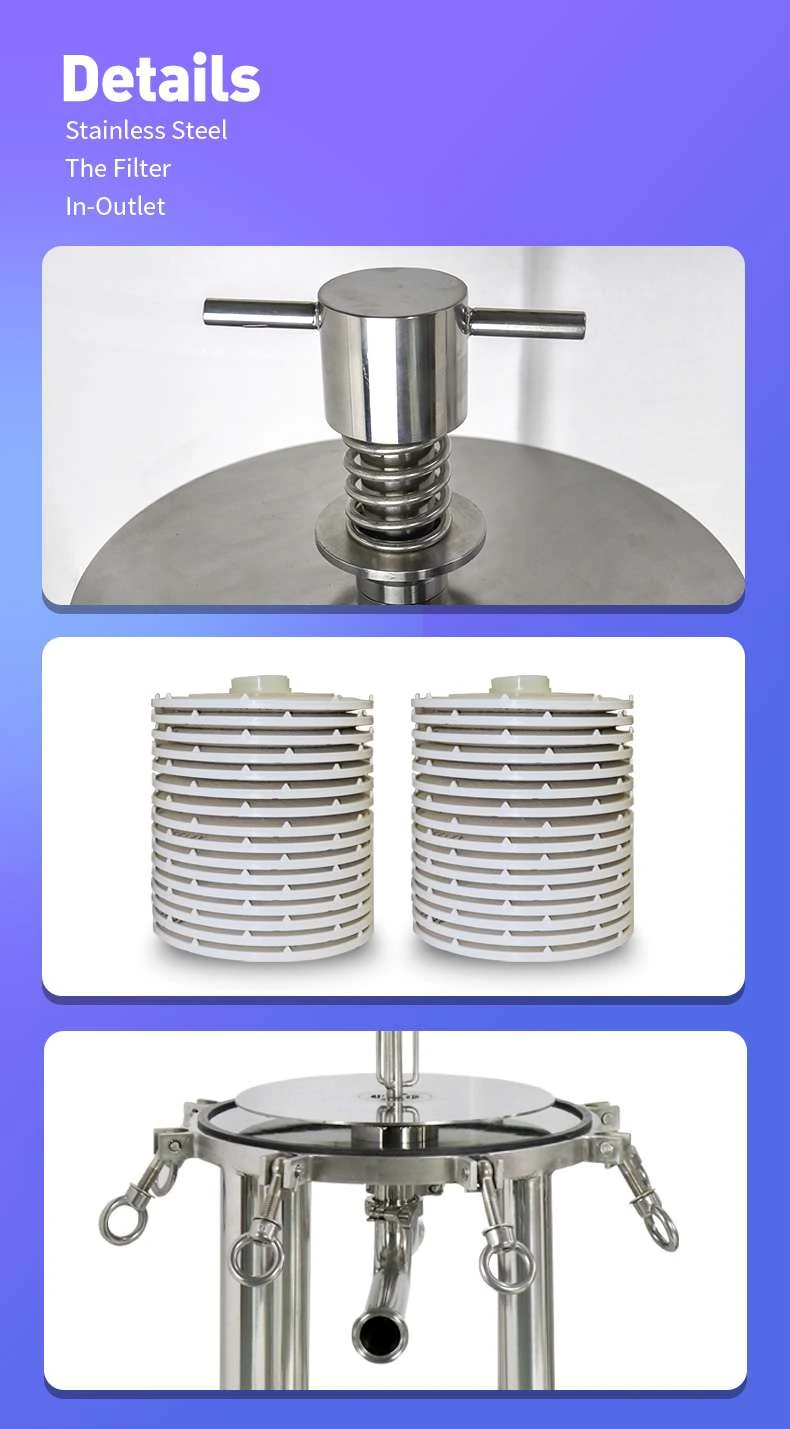

lenticular filter for sale

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories


1. What is the maximum vacuum pressure that the lenticular filter can withstand?

The maximum vacuum pressure that can withstand is 0.6Mpa.


2. What is the main material of lenticular filter?

The main material is 304, 316 stainless steel, which is not easy to rust and has a long service life.


3. What are the application scenarios of lenticular filter?

Alcohol, syrup, beer microorganism and solid filtration.

Filtration of juice and concentrated juice.

Clarified alcohol, dissolving enzyme, liquid glue, olive oil.

Pharmaceutical, chemical, electronic filtration, etc.

Shell:Stainless Steel 304 316L

Pressure Gauge(option):Tri-clamp

Vent/Drain Valve:304 316L

Drain Valve(option):Tri-clamp

Eye-bolt:Stainless Steel 304

Finish Type:Mechanical/electrolytic polishing

Stabilizer Blade:304

Max Operating Pressure:0.6Mpa


Max Operating Temperature:150℃

Connection of Shell:Flange

Disinfect:Online or Steam
