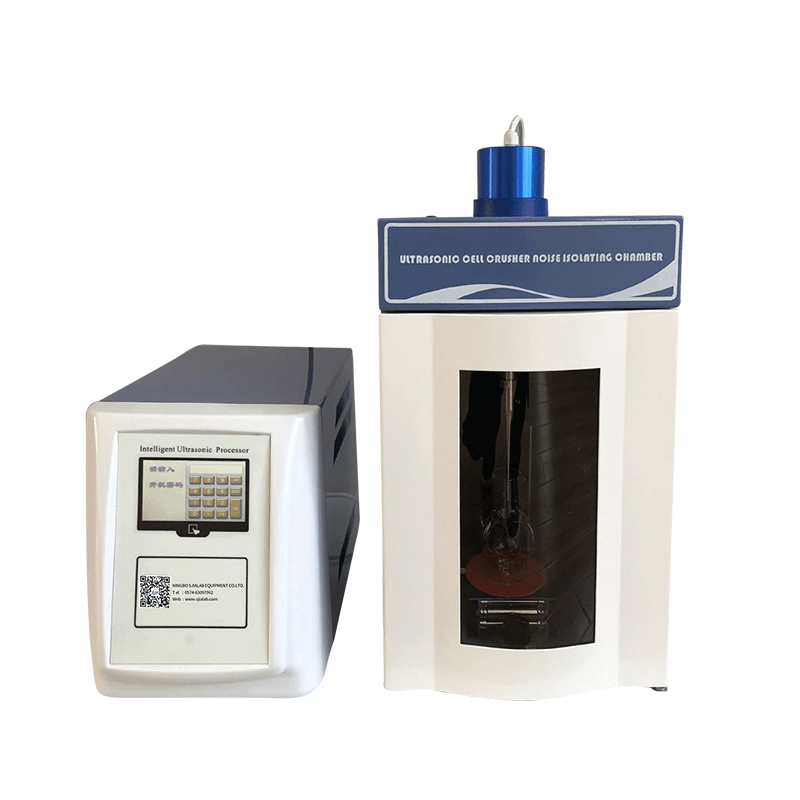

Ultrasonic cell crusher, also known as ultrasonic crusher, ultrasonic emulsifier, is a multi-functional and multi-purpose instrument that uses ultrasonic waves to produce cavitation effects in liquids; it can be used for a variety of animals and plants, viruses, cells, bacteria and It can also be used for emulsification, separation, homogenization, extraction, defoaming, clearing, vegetation of nanomaterials, dispersion and acceleration of chemical reactions, etc.
Instruments are widely used in teaching, research and production in the fields of biology, microbiology, physics, zoology, agronomy, and pharmaceuticals.
1. Drug extraction, cell, bacteria, virus tissue fragmentation. such as extraction of cellular contents.
2. Dispersion, homogenization, and emulsification of material particles. such as the dispersion of nanomaterials.
3. Accelerate the dissolution and accelerate the chemical reaction. If used for chemical synthesis, this ultrasonic equipment is equipped with a soundproof box bracket, a special soundproof box, and a low temperature system.
4. Ultrasonic crushing is an application of sonochemical equipment, which can be used for plant extraction, water treatment, solid-liquid dispersion, deagglomeration of particles in liquid, promotion of solid-liquid reaction and other effects, so that larger particle size aggregates are dispersed into smaller particles. Stabilization refers to ensuring that the powder particles remain uniformly dispersed in the liquid for a long time.

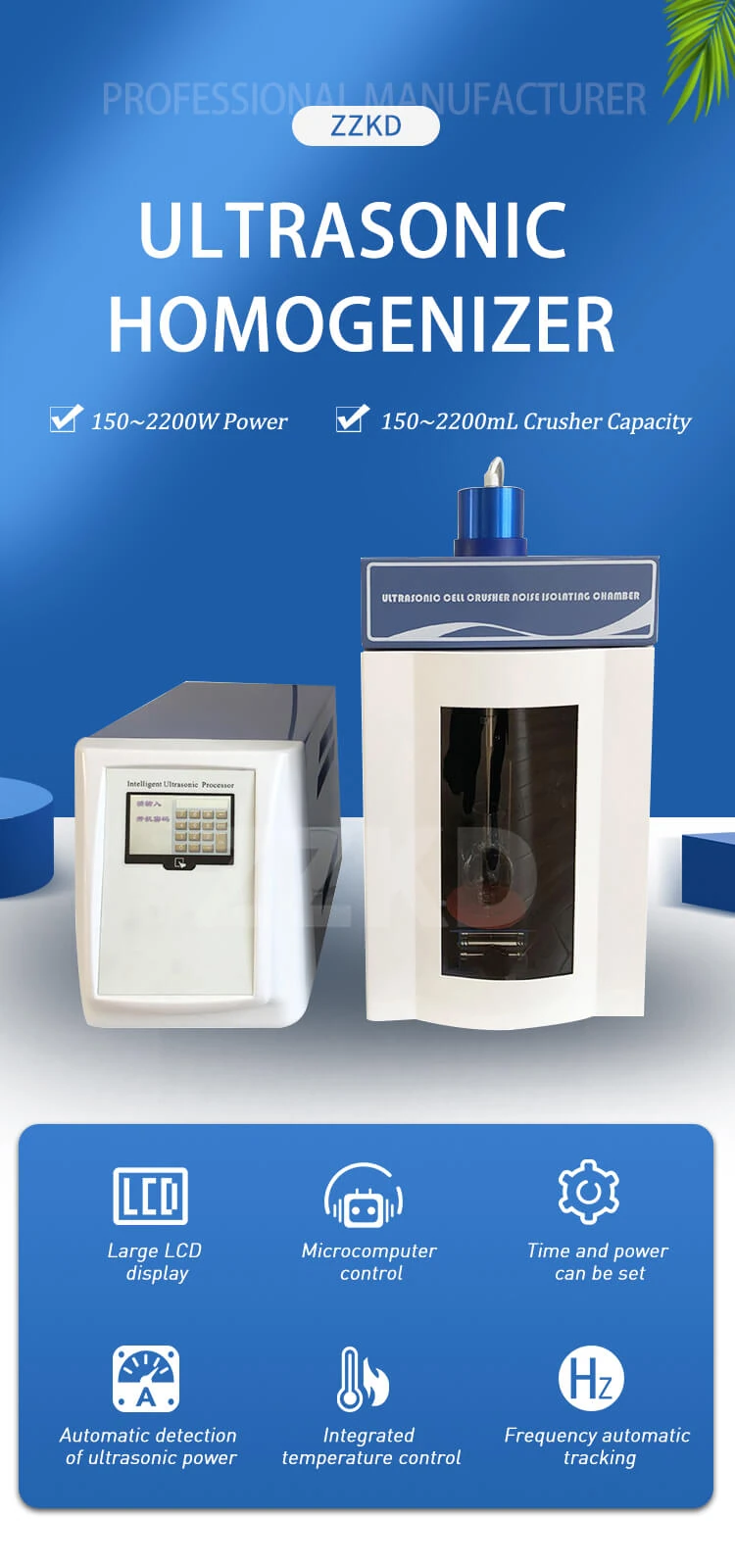

●4.7-inch large-screen LCD touch screen display.
●Microcomputer control, can store 20 groups of working data.
●Ultrasonic time and ultrasonic power can be set.
●Automatic detection of ultrasonic power to prevent ultrasonic power from changing with the temperature of the sample.
● Integrated temperature control prevents overheating of the sample.
●Automatic frequency tracking, automatic fault alarm.
●Single ultrasonic time: 0.1-99.9S
●Single interval time: 0.1-99.9S
●Total working time: 1S-99H59M59S
●Working mode: intermittent or continuous
●Frequency: 19.5-20.5KHz
1. Q: When there are multiple sets of work data, can it be selected?
A: Our products are controlled by microcomputer, which can store 20 groups of working data. No matter which set of data you use, you can switch it quickly and easily.
2. Q: When the sample temperature changes, the ultrasonic power also changes?
A: Our products can set ultrasonic time and ultrasonic power. And it will automatically detect the ultrasonic power to prevent the ultrasonic power from changing with the sample temperature.
3. Q: Does it work intermittently or can it work continuously?
A: Our model of ultrasonic cell crusher can work intermittently or continuously. It also integrates temperature control and automatic frequency tracking to prevent overheating of the sample and an automatic alarm in the event of a malfunction.
Model | Ultrasonic Frequency(KHZ) | Maximum Power (W) | Optional | Crusher Capacity (ml) | Sample temperature monitor |
UH-150W | 20-25 | 0-150 | 2,3,6 | 0.1-150 | Yes |
UH-250W | 20-25 | 0-250 | 2,3,6,8 | 0.1-250 | Yes |
UH-500W | 20-25 | 0-500 | 2,3,6,8,10 | 0.1-500 | Yes |
UH-650W | 20-25 | 0-650 | 2,3,6,10,12, | 0.1-650 | Yes |
UH-900W | 20-25 | 0-900 | 2,3,6,8,10,12 | 0.1-900 | Yes |
UH-950W | 20-25 | 0-9500 | 2,3,6,10,12,15 | 0.1-950 | Yes |
UH-1200W | 19.5-20.5 | 0-1200 | 3,6,10,15,20,22 | 5-1200 | Yes |
UH-1500W | 19.5-20.5 | 0-1500 | 10,15,20,22,25 | 20-1500 | Yes |
UH-1800W | 19.5-20.5 | 0-1800 | 15,20,22,25 | 50-1800 | Yes |
UH-2000W | 19.5-20.5 | 0-2000 | 15,20,22,25 | 50-2000 | Yes |
UH-2200W | 19.5-20.5 | 0-2200 | 15,20,22,25 | 50-2200 | Yes |
Please leave your contact information, we will arrange the business staff to contact you as soon as we see the message.
