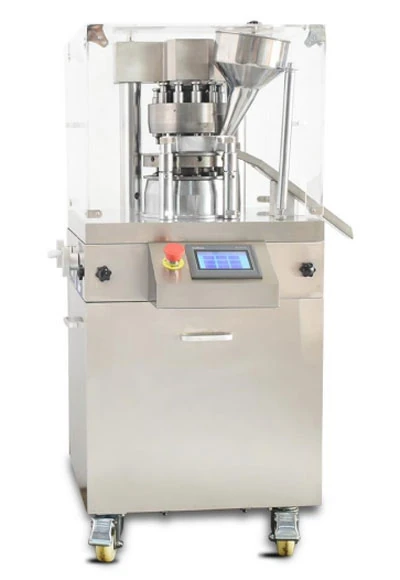

ZP Series Rotary Tablet Press Machine is a single-press automatic rotary tablet press machine that presses granular raw materials into various tablets. The pill tablet press machine is used for tablet production in the pharmaceutical industry, and it can be used in chemical, food, electronics and other industrial sectors. The peripheral casing is fully enclosed, and the material is stainless steel. The pill tablet press machine is equipped with transparent glass doors and windows, which can clearly observe the state of tablet pressing. All controls and operating parts are logically arranged. The stepless frequency conversion speed regulation device is used for electrical speed regulation, and the rotation is stable. This machine is equipped with electromagnetic braking motor and other safety protection devices, which can be adjusted and operated during operation.

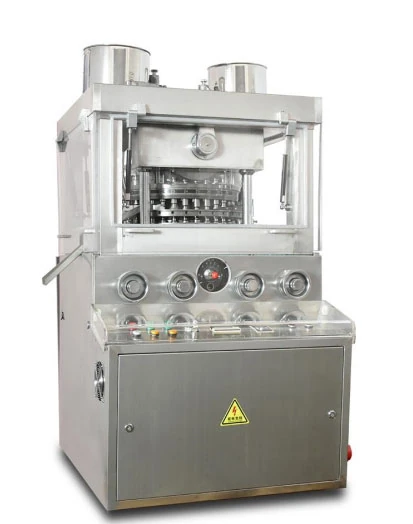

Rotary tablet press machine is the most widely used pill tablet press machine in production at present. It is mainly composed of transmission parts, turntable parts, pressure wheel frame parts, track parts, lubricating parts and enclosures. The general turntable structure is three layers, the upper punch is installed in the upper die hole, the middle die is installed in the middle layer, and the lower punch is installed in the lower die hole. The transmission part makes the turntable rotate, and while the turntable rotates, the upper and lower punches move up and down regularly along the fixed track. At the same time, the designer installs the upper and lower pressure wheels at the appropriate positions above the upper punch and under the lower punch. When the upper punch and the lower punch rotate and pass through their respective pressure wheels, they are pushed by the pressure wheels so that the upper punch goes down and the lower punch goes down. Punch upward motion and pressurize. There is a feeder with a fixed position on the middle layer of the turntable, and the material flows into the die hole continuously through the feeder. The pressure adjustment hand wheel is used to adjust the height of the lower pressure wheel. If the position of the lower pressure wheel is high, the lower punch will be lifted higher during compression, and the distance between the upper and lower punches will be close, resulting in greater pressure. The adjusting hand wheel is used to adjust the filling of the material, and also to adjust the volume of the material in the die hole.

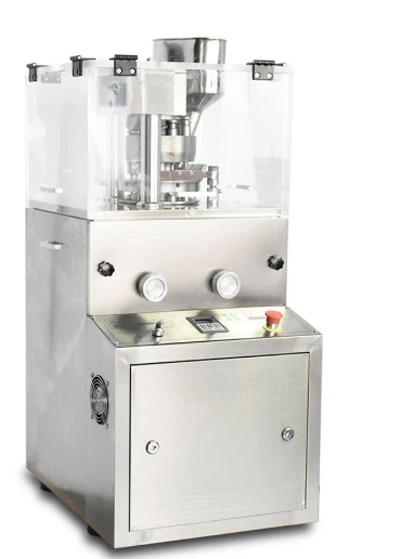

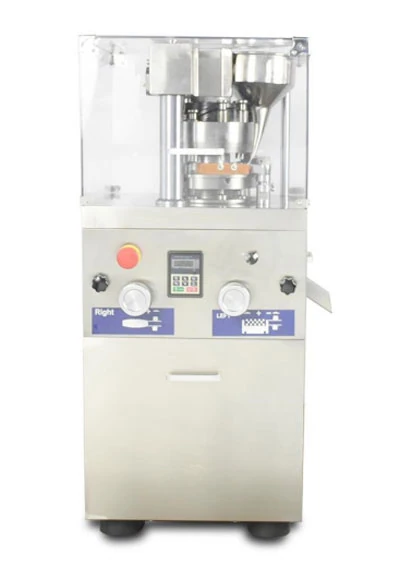

1. When the lower punch of the high-speed tablet press is turned under the feeder, the position of the lower punch tends to be lowered, causing the material particles to flow into the cavity of the middle die; the upper punch rises and then opens the feeder.
2. When the lower punch is transferred to the filling rail, a certain amount of filling is guaranteed.
3. When the lower punch is transferred to the metering rail, the excess material particles are scraped off by the powder scraper to ensure the accuracy of the dosage.
4. When the upper and lower punches are transferred between the upper and lower pressure rollers, the distance between the two punches is the smallest, that is, compressed into pieces.
5. When the lower punch turns to the top and derails, the lower punch lifts the sheet in the middle mold cavity and gradually ejects it until the lower punch is level with the upper edge of the middle mold.
6. The tablets are pushed away by the blocking plate
Some rotary tablet presses are equipped with secondary compression tablet presses, adding a pre-compression, that is, the material is compressed by the upper and lower pre-compression wheels before entering the main compression, which can greatly improve the quality of the tablet; and the secondary compression The high-speed tablet press machine for tablets is used to press double-layer tablets. After one feeding, it is pre-pressed, and after adding another feeding, it is mainly pressed, and finally a double-layer tablet is obtained.
1.It can press ordinary round tablets and various special-shaped tablets
2.The outer casing is fully enclosed, the material is made of stainless steel, and the inner table is made of stainless steel, which meets the requirements of GMP.
3.The transparent glass door and window can clearly observe the state of tablet pressing, and can be fully opened, which is easy for internal cleaning and maintenance.
4. All controls and actions are well laid out.
5.Adopt frequency conversion speed regulating device for electrical speed regulation, easy to operate, stable rotation, safe and accurate.
6.The tablet press machine is equipped with an overload protection device, which can automatically stop when the pressure is overloaded.
7.The tablet press machine is equipped with an electromagnetic brake motor and other safety protection devices, which can be adjusted and operated during operation.
The single-pressure automatic rotary continuous tablet press is suitable for pharmaceutical, food, chemical, electronic and other industries. Examples of applicable industries:
1. Pharmaceutical industry: traditional Chinese medicine tablets, western medicine tablets, nutrient tablets, etc.;
2. Food industry: candy chips, coffee chips, chocolate beans, seasoning blocks, etc.;
3. Food industry: buccal tablets, milk tablets, calcium tablets, propolis tablets, etc.;
4. Electronic battery industry: electronic components, batteries, etc.;
5. Chemical industry: aromatic balls, fertilizer tablets, mosquito coils, catalysts, disinfection tablets, powder cakes, etc.;
6. Metallurgical ceramics industry: catalyst, metallurgical powder granules, ceramic granules, metal flakes, etc.
Model
| Punch quantity (Sets) | Max.tablet pressure (kn) | Max.tablet diameter (mm) | Max.tablet thickness (mm) | Production capacity (PC/h) | Motor power (kw) |
ZP-5A | 5 | 40 | 20 | 6 | 9000 | 1.5 |
ZP-7A | 7 | 40 | 20 | 6 | 12600 | 1.5 |
ZP-9A | 9 | 60 | 20 | 6 | 16200 | 1.5 |
ZP-13A | 13 | 150 | 50 | 8-15 | 7800-19500 | 7.5 |
ZP-15A | 15 | 150 | 45 | 8-15 | 9000-23000 | 7.5 |
ZP-17A | 17 | 120 | 40 | 8-15 | 10200-25500 | 7.5 |
ZP-19A | 19 | 120 | 30 | 8-15 | 11400-28500 | 7.5 |
ZP-21A | 21 | 80 | 30 | 9 | 45000 | 7.5 |
