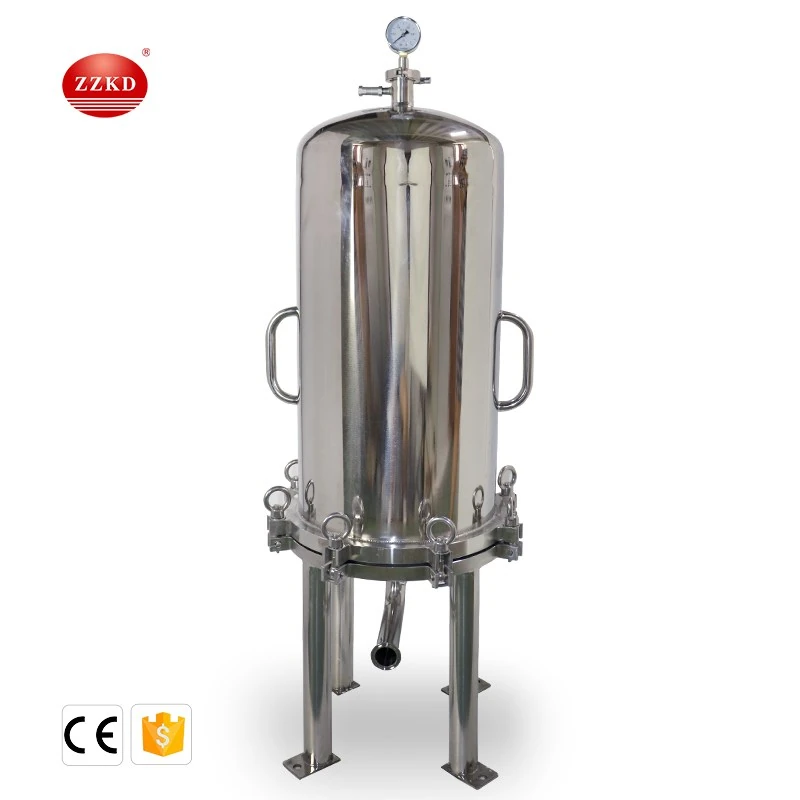

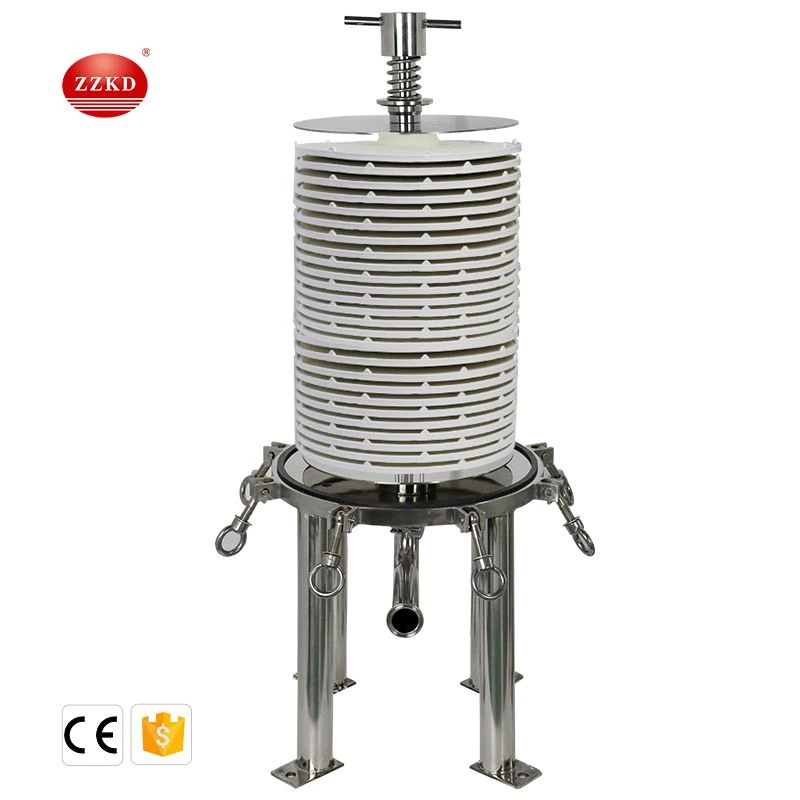

Lenticular depth filter system
Lenticular depth filter is now widely used in the fields of syrup filtration, red wine and beer filtration. It has a very good use effect in clarification filtration and polishing filtration. Compared with the diatomaceous earth filter, the structure of the cake filter has the advantages of low cost and easy maintenance. The maximum working pressure can reach 10 kg.
The working principle of Lenticular depth filter system:
Lenticular depth filter is mainly used in auxiliary services in food processing, wine making, beverage, pharmaceutical, cosmetics, and chemical industries. Lenticular depth filter has a wide range of applications. According to the filter purpose, media condition, configuration of different forms and different materials of filter elements. For example, GMP factory pharmaceutical water can be used in series with two sets of 5UM and 1.0UM folded membrane cartridge filter elements. In the fermentation industry, air filtration can sterilize the incoming air, remove bacteriophage, and seal the exhaust gas for treatment to reach the HIM standard for bacteria filtration.
Features of Lenticular depth filter:
1. Easy to clean, special drain valve can be installed at the water inlet and outlet, convenient for draining water.
2. The filter element is easy to replace, reducing the leakage of the filter element.
3. The stainless steel pressure gauge can display the pressure value in the tank in real time.
4. The product is made of stainless steel, high temperature resistance, corrosion resistance, and durability.
5. The large filter cake comes standard with 4 filter cakes, which can meet the filtration requirements of large flow.
6. Adopt the bottom-in and bottom-out structure design, effectively avoid the turbulence of the material and liquid, and improve the filtration performance.
Parameters of Lenticular depth filter:
Filter element material: polypropylene membrane (PP) filter element, polytetrafluoroethylene (PTFE) filter element, cellulose acetate membrane (CN-CA) filter element. Filter element accuracy: 0.1-60um (micron) Filter element length: 10" 20" 30" 40" (ie 250MM 500MM 750MM 1000mm) Filter element can withstand pressure: 0.42M.pa, support recoil. Filter element interface methods are: 222 (flat mouth type) 226 (plug-in type)
Filter parameters: inner surface; Ra0.2um
Outer surface: polishing treatment, matt treatment,
Filter capacity: 0.5T/H-25T/H
Pressure range: 0.1M.pa-0.6m.pa 1-6bar
The filter cartridges are: 1 core 3 cores 5 cores 7 cores 9 cores 11 cores 13 cores 15 cores
Filter cartridge height: 10" 20" 30" 40"
Commonly used filter element material: polytetrafluoroethylene (PTFE), polyaluminum (PE), nylon (NYLON), polypropylene (PP)
The filter pore size is: 0.1UM 0.22UM 0.45U 1UM 3UM 5UM 10UM
Material: AISI304 (1.4301) 316L (1.4404)
