Glass reactor manufacturers in china
We are a professional manufacturer of glass reactors in China. Our main products include single layer glass reactors, double jacketed glass reactors and so on.
What is a glass reactor?

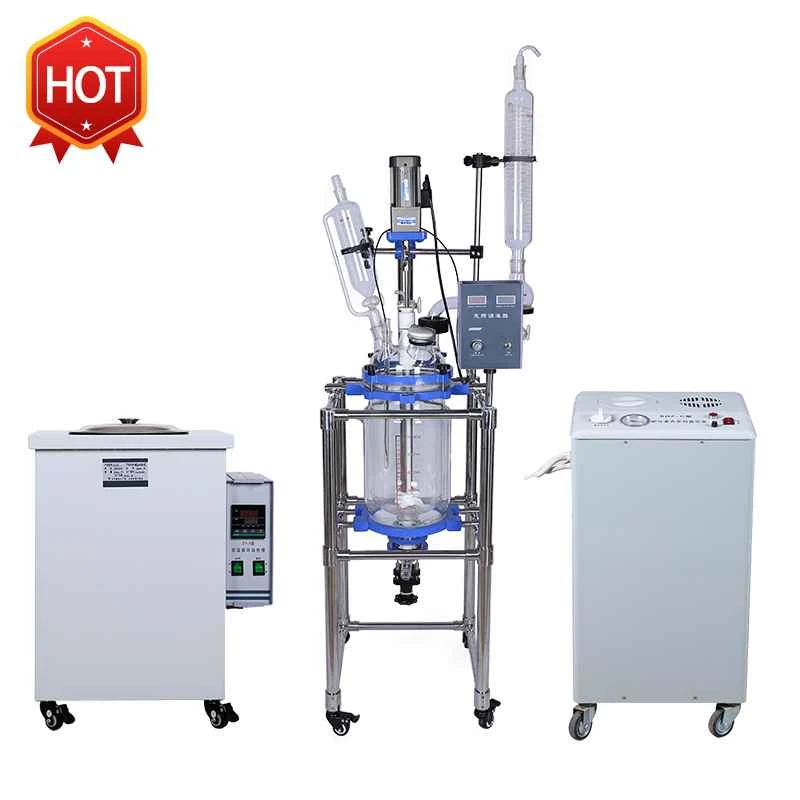

The glass reaction kettle directly heats the reaction kettle body through the hot plate device, so that the materials in the reaction kettle are heated at a constant temperature, and stirring can be provided. The materials are reacted in the reaction kettle, and the evaporation and reflux of the reaction solution can be controlled. After the reaction is completed, the lid of the single-layer glass reaction kettle and the motor part are mechanically lifted (electric lift is optional), and the kettle body can be rotated 360 degrees to facilitate the material It is extremely convenient for dumping and discharging. It is an ideal equipment for modern chemistry, experiment, biopharmaceutical and new material synthesis.
The advantages of our glass reactor:
1.Using high borosilicate glass, with excellent physical and chemical properties.
2.Quick stirring, stable operation, no sparks, and long service life.
3.Teflon component sealing, proprietary technology, can ensure a good vacuum degree and long service life.
4.The overall structure is stable and can be moved as a whole.
5.The PTFE discharge valve with the smallest or no dead angle can effectively reduce the dead angle of stirring.
6.After the reaction is completed, the interlayer solution in the reactor can be completely drained without liquid accumulation.
7.All supporting interfaces can be customized, which can be easily connected with other equipment
8.The overall structure is scientific, novel, practical, beautiful, leading in the same industry.
What are the heating methods of the glass reactor?
The heating methods of the glass reactor include electric heating, steam heating, circulating water and oil bath heating, far infrared heating and outer (inner) coil heating. Among the five heating methods, at present, the electric heating method and the circulating water and oil bath heating are commonly used.
The reason why the electric heating method is widely used in glass reactors is that the heating method of electric heating is electronically controlled, and the heating system can be controlled by a microcomputer. For the operator, the electric heating method is used. When heating, the temperature is very easy to control and master. Circulating water and oil bath heating is mainly used for double-layer glass reactors. Nowadays, many laboratory instruments and equipment have an intelligent control panel, such as drying ovens, water and oil baths, stirrers, etc. The circulating water and oil bath is a circulating, constant temperature heating device specially designed and produced for heating double-layer glass reactors. It has precise temperature control, controllable output flow, and energy saving. It is also simple and convenient for experimenters to operate.
The glass reactor is also very important for the heating method of the material and the equipment used. During operation, the temperature should not be too high, if it is too high, it will cause an accident, and the temperature should not be too low. If it is too low, it will not be able to heat up. It worked. Therefore, in the above two heating methods, the temperature can be controlled during heating, and the operation is relatively safer. The glass reactor is to stir and react under normal pressure or negative pressure in a sealed glass container under the set constant temperature condition, and can control the evaporation and reflux of the reaction solution.
