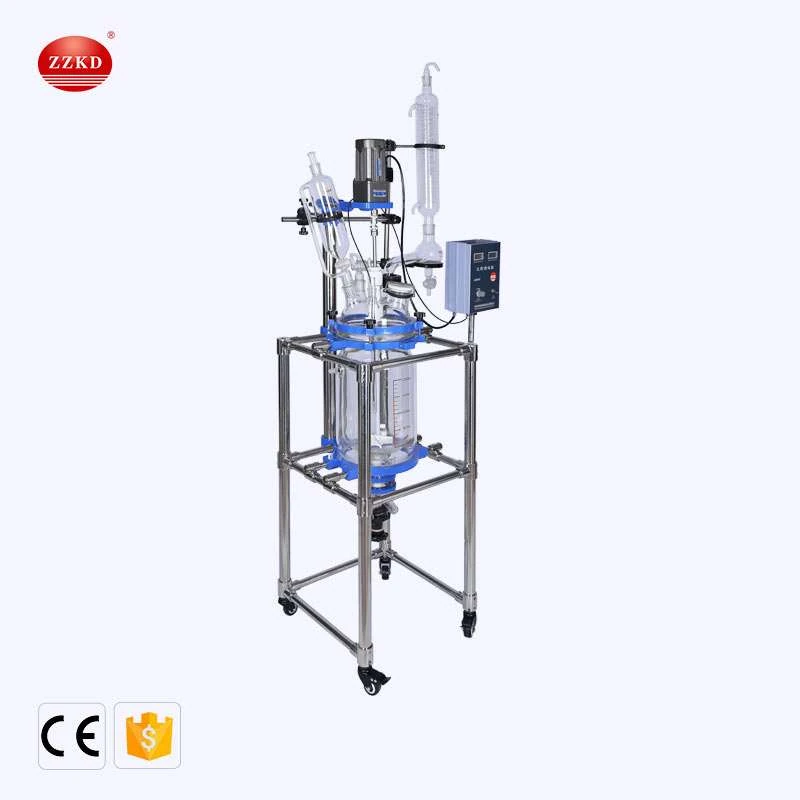

5L 10L 20L 50L best glass cylindrical reactor
Glass cylindrical reactor is also called glass reactor. Our hot-selling models include 5Lglass cylindrical reactor, 100l glass reactor, 20L glass cylindrical reactor, 50L glass cylindrical reactor, etc. It has the difference between single layer and double layer. You can choose a single-layer glass reactor or a double-layer glass reactor according to the conditions of use.
The glass cylindrical reactor can be used for high-temperature reaction of the equipment, and can also be vacuumed to perform negative pressure reaction. It is equipped with universal casters and can be moved, operated, cleaned, installed and disassembled conveniently by one person. It is not only convenient to use, but also has a novel and practical structure. Beautiful and generous appearance; glass cylindrical reactor can carry out various solvent synthesis reactions under constant temperature conditions; it can be divided into controllable fully sealed structure, which can use negative pressure to continuously suck in various liquids and gases, and it can also be refluxed or distilled at different temperatures .
Features of glass cylindrical reactor:
1. Frequency conversion speed regulation, deceleration motor, constant speed, no brush, no spark, safe and reliable, and can work continuously.
2. All glass is made of GG173.3 high borosilicate glass, which has excellent chemical and physical properties.
3. Integral stainless steel column type mobile frame structure, six-port reactor cover. Large mouth design, easy to clean, standard mouth can be equipped with distillation synthesis devices such as reflux, liquid filling, temperature measurement, etc.
4. The stainless steel-coated PTFE stirring blade is suitable for mixing liquids with low viscosity.
5. Lower discharge port flange and PTFE valve, there are no dead corners in the container, and the lower discharge can be disassembled, which is convenient for complete and rapid discharge of solid materials.
6. Alloy steel mechanical seal, PTFE connection port, keep high-precision seal during work.
7. The Pt100 sensor probe has high temperature measurement accuracy and small error.
5L,10L,20L,50Lglass cylindrical reactor operating instructions:
1. In the reaction of different media in a glass reactor, first check whether the media corrodes the main material. Special orders are required for instantaneous reactions that produce a large amount of gas or high-temperature flammable and explosive chemical reactions, and high-pressure, high-temperature or medium containing chloride ions, fluoride ions and other reactions that cause serious corrosion to stainless steel. Except that the body and jacket of the glass reactor are made of transparent glass, the others are made of stainless steel or other metal materials.
2. When loading the reaction medium, it should not exceed 2/3 of the liquid level of the kettle body.
3. It is strictly forbidden to disassemble under pressure during or at the end of work! It is strictly forbidden to work under over-pressure and over-temperature conditions.
4. The jacket heat-conducting oil is heated. When adding heat-conducting oil, be careful not to mix water or other liquids into it. Check the oil level of the heat-conducting oil from time to time.
5. If there is an abnormal sound inside the isolation sleeve during operation, stop and release the pressure, and check whether the mixing system is abnormal. Regularly check the swing of the mixing shaft. If the swing is too large, the bearing or sliding sleeve should be replaced in time.
