20l rotary evaporator dry ice
Rotary evaporation instruments have developed to this day, and many models have been developed, which can be widely used in various fields. People are often dazzled when purchasing and do not know which model to buy. Let's talk about our company's various types of rotary evaporators.
Our Keda Technology has various types of rotary evaporators, which have the advantages of large contact area, high evaporation efficiency, convenient use, low noise, reliable sealing, etc. Yes, it can meet the needs of most scenarios. Let's talk about the representative models of each capacity and 20l rotovap for sale.
| Picture | Model | Product Parameters |
|
|
R-1010(10l rotary evaporator) |
1. Rotary motor: 150W 2. Heating temperature: room temperature -300℃ 3. Water bath material: stainless steel 304 (silicone jacket) 4. Capacity: 10L |
|
|

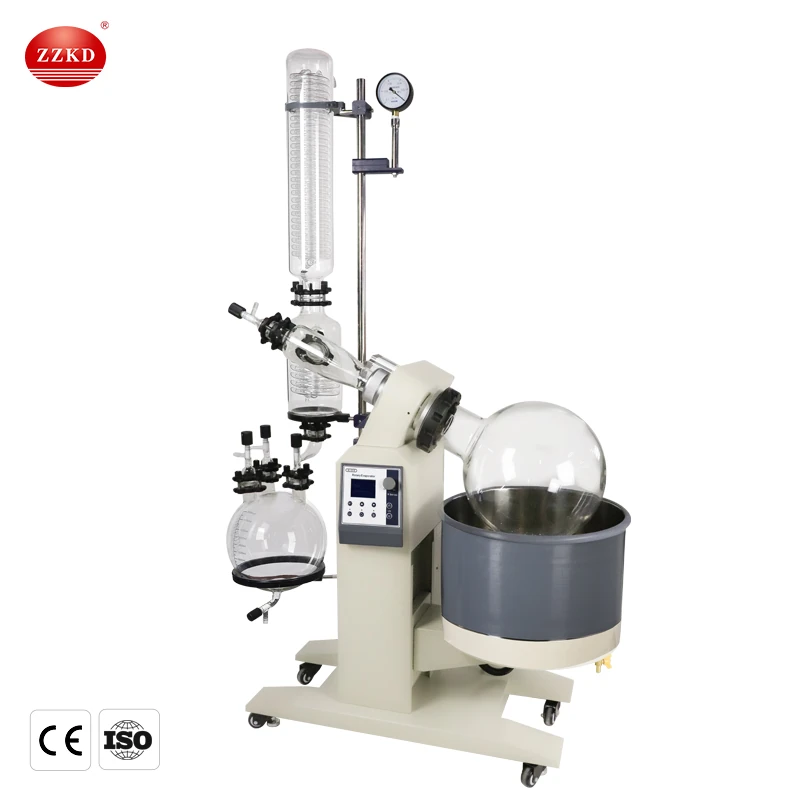

R-1020(20l rotary evaporator) |
1. Rotary motor: brushless motor 250W 2. Heating temperature: room temperature -300℃ 3. Heating power: 4KW 4. Capacity: 20L |
|
|

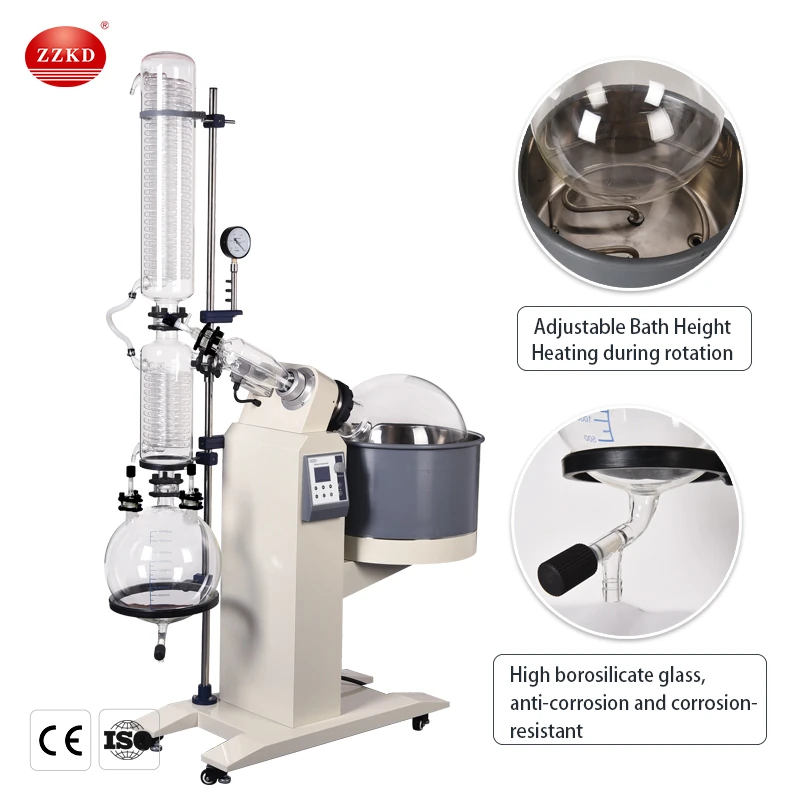

R-1050(50l rotary evaporator) |
1. Rotary motor: brushless motor 250W 2. Heating temperature: room temperature -300℃ 3. Heating power: 6KW 4. Capacity: 50L |
1~5L rotary evaporator: RE-201 series small rotary evaporator, the maximum capacity of the rotating bottle is 2L, the maximum capacity of the collecting bottle is 1L, the speed is 5-180rpm, the motor power is 40W, the vacuum degree is 0.098Mpa, the heating power is 1.5Kw, the temperature is up to 300℃, and stainless steel is used. Liner, GG-17 high borosilicate glass. The RE-201D type is the basic product of Lanphan's existing rotary evaporator product series. It has a manual lifting handle, and the self-developed mechanical and glass components are exquisitely designed, which can accurately set the position of the glass components. The digital display of the number of revolutions and the temperature of the heating pot can help you optimize the control of all distillation processes. The new fixing mechanism simplifies the replacement operation process of the evaporating flask, which is suitable for laboratory experiments.
10~20L rotary evaporator: RE-1002 Rotary Evaporator has a maximum capacity of 10L for the rotating bottle, a collection bottle capacity of 5L, a rotation speed of 0-140rpm, a motor power of 180W, a heating power of 3Kw, a maximum temperature of 400°C, and a temperature control accuracy of ±1°C. Equipped with dual condensers (main cooling and auxiliary cooling), the condensation effect is better and the recovery rate is higher. Because the instrument works under vacuum conditions, and all parts in contact with materials are made of high temperature resistant borosilicate glass and polytetrafluoroethylene materials, this instrument is especially suitable for heat sensitive materials and corrosion of stainless steel and other metal materials. Concentration, crystallization, separation and solvent recovery of materials. There is also a 20L model RE-1020 available for small sample production.

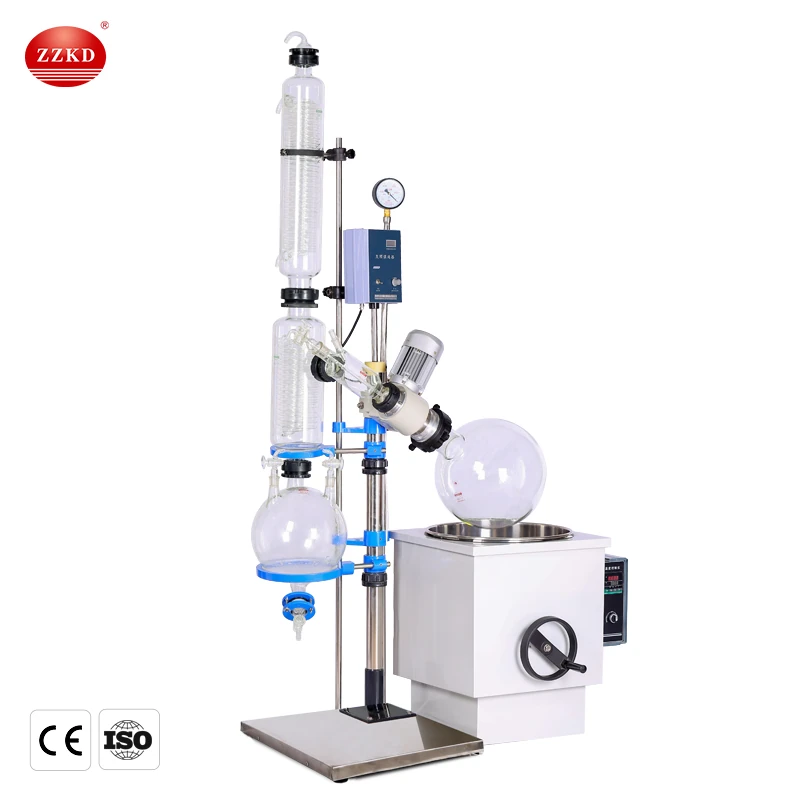

20l rotary evaporator dry ice
30~50L rotary evaporator: RE-1050 Rotary Evaporator Rotary bottle capacity 50L, collecting bottle capacity 20L, speed 0-120rpm, motor power 250W, heating power 8Kw, maximum temperature 400℃, temperature control accuracy ±1℃. Digital DC electronic stepless speed control is adopted to make the material form a large-area uniform film on the bottle wall, and then the rotating bottle is uniformly heated by an intelligent constant temperature water bath, evaporated at a high speed under vacuum conditions, and the solvent vapor is cooled by a high-efficiency glass condenser. Recycle in collection bottle. Suitable for small scale production.

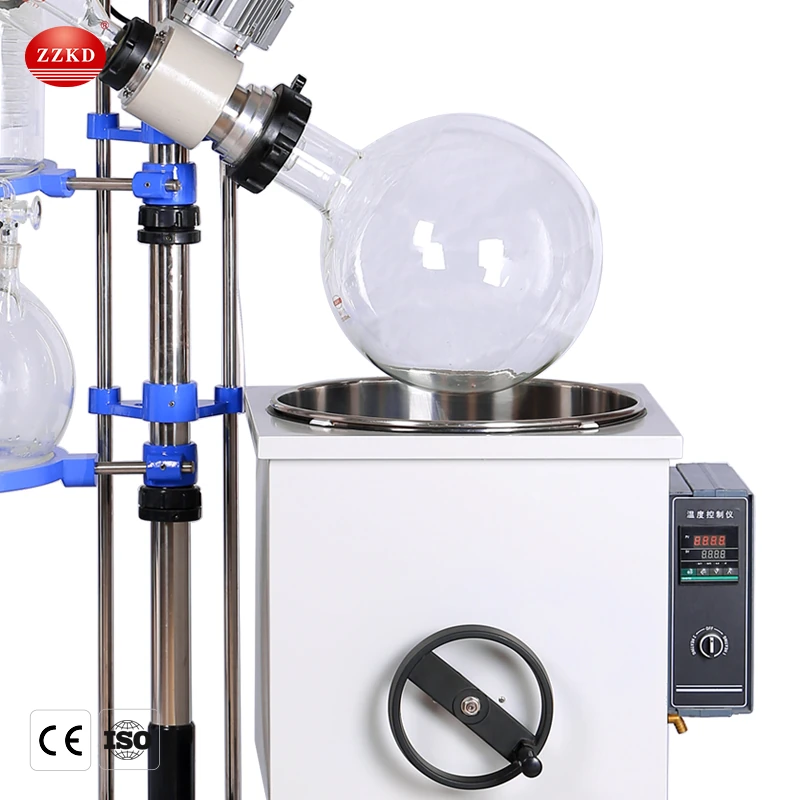

20l rotary evaporator evaporating flask
100L rotary evaporator: RE-100L Rotary Evaporator has a maximum capacity of 100L for the rotating bottle, a collection bottle capacity of 50L, a rotation speed of 0-110rpm, and a motor power of 300W. The heating power is 12Kw, the maximum temperature is 400℃, and the temperature control accuracy is ±1℃. There is a universal wheel installed under the main body of the rotary steamer, the whole machine can be moved, the bath can be automatically raised and lowered, and the speed regulation and temperature control are concentrated on the table of the main machine, which is convenient for the user to operate to the greatest extent. The rotating motor adopts brushless motor, which is safe, stable and noise-free, and the liquid crystal display speed. Equipped with dual condensers (main cooling and auxiliary cooling), the condensation effect is better and the recovery rate is higher. RE-100L Rotary Evaporator is a large-scale rotary evaporator developed and launched exclusively by our factory. It has created a precedent for domestic large-capacity rotary evaporators, filled the gap of domestic 100-liter rotary evaporators, and facilitated the needs of customers in actual large-scale production.
The above is the introduction of our company's 20l rotary evaporator for dry ice. If you have needs, you can contact Zhengzhou Keda Machinery Equipment Co., Ltd. For decades, Zhengzhou Keda Machinery Equipment Co., Ltd. has been committed to the production and manufacture of laboratory instruments and pipe fittings. If you want to know about our products, or want to buy our instruments, please feel free to contact us, we will be happy to help you.
