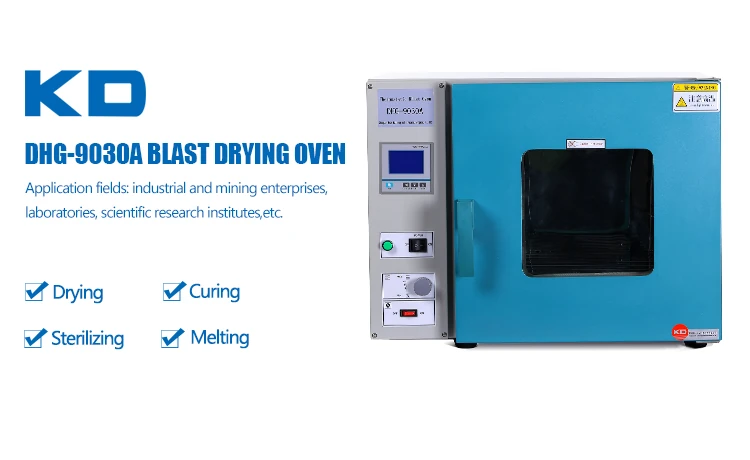

DHG-9030A blast drying oven

DHG-9030A blast drying oven

We sell DHG-9030A laboratory vacuum drying oven, which is suitable for drying, curing, melting, and sterilization tests in industrial and mining enterprises, laboratories and scientific research institutes.

Advantage:

Blast drying oven is one of the most commonly used drying equipment, widely used in industrial and mining enterprise laboratories, medical and health research institutes, for drying, baking, wax melting, sterilization, curing and other reactions.

Features:

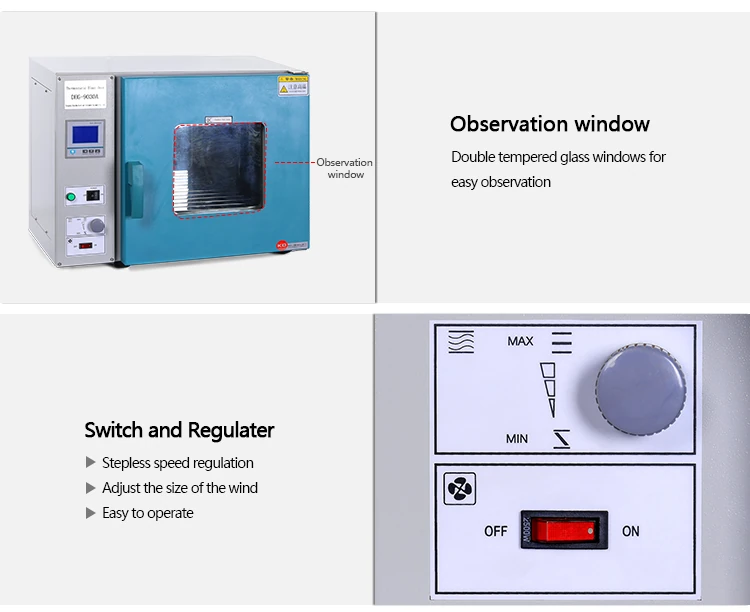

1. It is convenient to observe the reaction of materials in the working room.

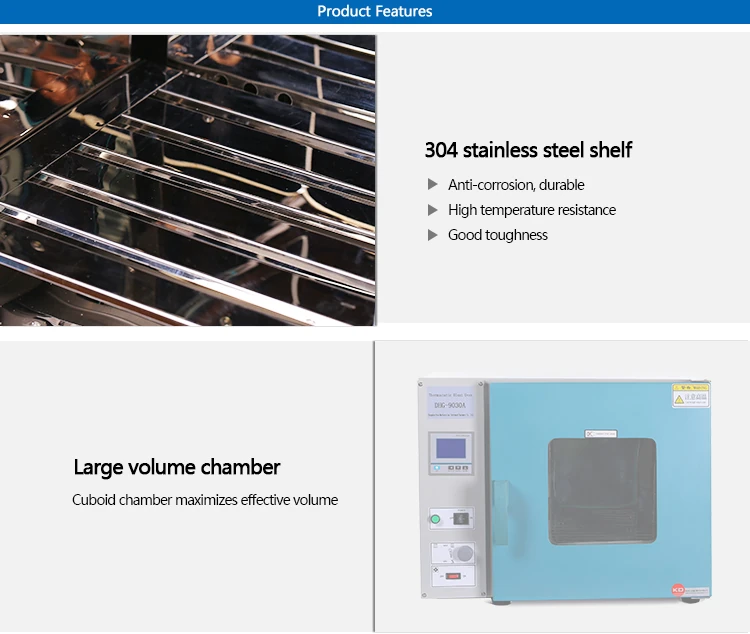

2. The working room is made of stainless steel, which is durable.

3. The use of a new type of silicone sealing strip, can run at high temperature for a long time, has a long service life and is easy to replace.

4. The box body is made of high-quality steel plate with beautiful appearance.

5. The temperature is more uniform to ensure that the material can fully react.

blast drying oven laboratory

DHG-9030A blast drying oven laboratory for sale

blast drying oven laboratory

DHG-9030A blast drying oven laboratory for sale

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories

Grouped equipment:

Diaphragm Vacuum Pump

Rotary vane vacuum pump

FAQ:

1. What is the principle of the blast drying oven?

When the hot air in the drying room heats the material, the moisture will become water vapor and mixed into the hot air. The air in the drying room is convectively circulated through the fan, and then the hot air with water vapor is discharged through the exhaust hole, and the air intake hole sucks in at the same time The air outside the drying room enters the drying room, and through the continuous exchange of air inside and outside the drying room, moisture is also taken out of the drying room to achieve the purpose of drying.



2. What is the highest achievable temperature of the blast drying oven?

250-300℃.



3. What are the requirements for the use environment of the blast drying oven?

Ambient temperature: 5°~40°C; relative humidity: no more than 85%; no strong airflow.



4. What are the heating methods of the blast drying oven?

The heating methods of the blast drying box include thermal oil heating, steam heating and electric heating. Of course, the most commonly used is electric heating.


Model

DHG-9030A

Power Supply

220V/50Hz

Shell Material

Spray-paint Anti-corrosion

Liner Material

304 Stainless Steel

Temp. Range

RT+10~250°C

Temp. Stability

±1.0°C

Temp.Analysis

0.1°C

Working Temp.

+5~40°C

Input Power (W)

850

Chamber Capacity (L)

40

Inner Dimension (W*D*H, mm)

340*340*340

Overall Dimension (W*D*H, mm)

630*600*500

Shelves (Pcs)

1

Time Range

1~9999 min

Optional Configuration

EX
