Spray drying equipment is the most widely used machine in the liquid process forming and drying industry. Spray drying equipment is used to produce powdery and granular solid products from solutions, emulsions, suspensions and pasty liquid raw materials. Therefore, when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product must meet precise standards, spray drying is a very ideal process.
After filtering and heating, the air enters the air distributor on the top of the dryer, and the hot air enters the drying chamber evenly in a spiral shape. The material liquid passes through the high-speed centrifugal atomizer at the top of the tower, and (rotating) sprays into very fine misty liquid beads, which can be dried into finished products in a very short time in co-current contact with hot air. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is evacuated by the fan.

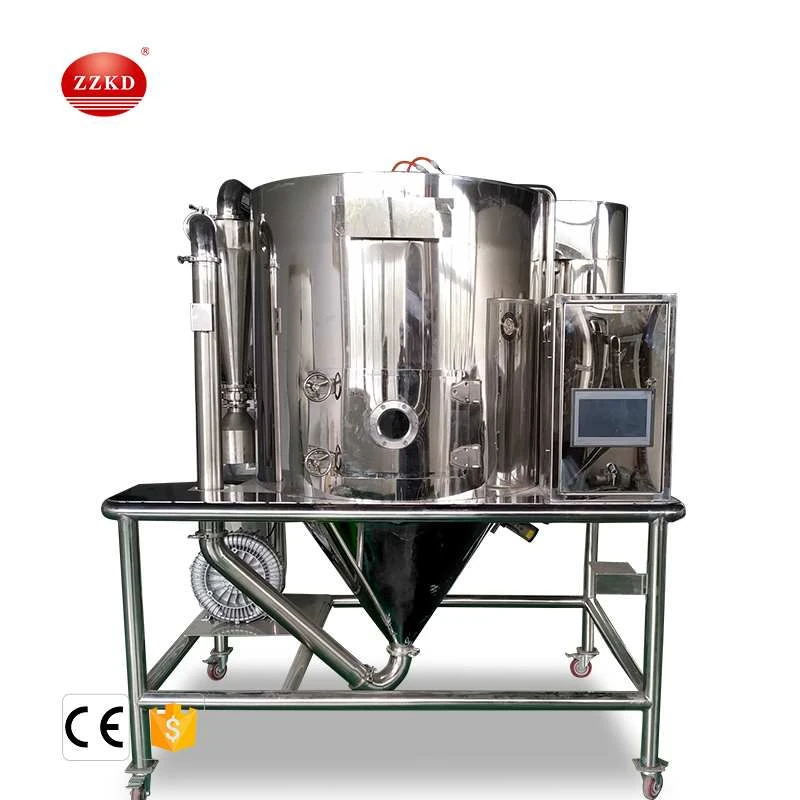

Experimental spray dryer equipment parameters:
1. Moisture evaporation rate 1000-1500ml/hour
2. Inlet air temperature range 110°℃-150℃
3. The temperature of the outlet air is controlled at 30°C-140°C
4. Peristaltic pump sample input volume 50-2000ML/H
5. Heater power 4KW
6. Real-time control PID constant temperature control technology, heating temperature control accuracy: ±1°℃;
7. Compressor 0.5KW, maximum gas output 4.2M3/H; working pressure 2-5bar
8. The frequency of the jet dredging device is variable
9. Nozzle diameter: 0.5mm. 0.7mm, 1mm.1.5mm. 2mm optional, and can be customized according to customer requirements;
10. The spray/hot air flow can be in the same direction and reversible.
11. Power 220/250V-50/60Hz-13amps
12. Drying time 1.0-1.5S
13. The spray head is located in the middle of the drying chamber, which can be used for co-current drying or counter-current drying. The drying time can be extended or shortened according to the characteristics of the material, which is more suitable for heat-sensitive materials;
14. The equipment is equipped with air handling system, body components, liquid supply system, air supply system, control system and air supply device without external equipment.
15. Extendable coating and granulating device line cutting head. By changing different fluidized bed devices, three process operations can be carried out.
16. The equipment's constant temperature control adopts PID technology, and its inlet air temperature can be controlled: ±0.5℃
17. Large color touch screen operation, dual control modes of automatic control and manual control, the whole experiment process is displayed on the color touch screen dynamically.
18. The equipment is equipped with air inlet and outlet with dustproof device.
