CBD Oil Extraction Machine Price


CBD is a non-addictive ingredient in cannabis, which can block the effect of THC on the human nervous system, and has pharmacological activities such as antispasmodic, anti-rheumatoid arthritis, and anti-anxiety. In the extraction of CBD, different extraction methods have their unique applicability. Below we introduce the complete production line of CBD oil extractor machine. The main products to be introduced are: falling film evaporator, short path ditilation unit, stainless steel reactor, centrifuge.


Falling film evaporator


The falling film evaporator is a high-efficiency single-pass non-circulating film evaporation equipment. The material liquid is added from the upper tube box of the heating chamber of the falling film evaporator, and is evenly distributed into each heat exchange tube through the liquid distribution and film forming device. Under the action of gravity and vacuum induction and airflow, it flows from top to bottom in a uniform film shape. During the flow, it is heated and vaporized by the heat medium on the shell side, and the resulting vapor and liquid phase enter the vapor separation chamber together. After the vapor and liquid are fully separated, the vapor enters the condenser for condensation (single effect operation) or enters the next effect evaporator as a The medium is heated to achieve multi-effect operation, and the liquid phase is discharged from the separation chamber.

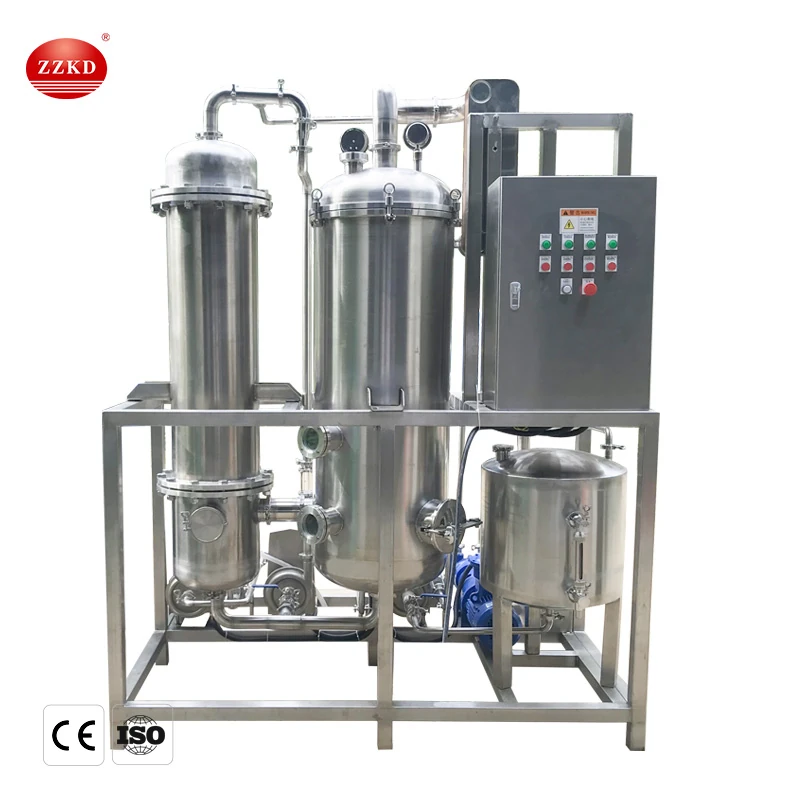

Falling film evaporator

The falling film evaporator has the characteristics of large heat transfer coefficient, small temperature difference loss, short heating time of materials, not easy to deteriorate, easy multi-effect operation, low energy consumption, and small equipment volume. The equipment consists of heater, separator, condenser, preheater, vacuum system, heat pressure pump, electrical instrument, control cabinet, working platform, etc. The prices of spinning falling film evaporators currently on the market vary according to different models and brands. Our falling film evaporators generally range from $55,000 to $62,251.


Molecular Distillation:


Short path molecular distillation, also known as molecular still, is a CBD purification equipment operating under high vacuum, which can separate, purify and concentrate CBD. The process is characterized by the short-term exposure of the distillate to high temperatures through high vacuum pressure. In the distillation column, a small distance of about 2 cm between the evaporator and the condenser, where the fluid is in a free molecular flow state, i.e. the molecular The mean free path is comparable to the size of the device. The advantage of this method is that it avoids toxicity problems that arise in techniques using solvents as separating agents, and also minimizes losses due to thermal decomposition. CBD purification equipment A complete set of molecular distillation equipment mainly includes: molecular evaporator, degassing system, feeding system, heating system, cooling vacuum system and control system. The price of molecular distillation is much cheaper than falling film evaporator. Our molecular distillation generally ranges from $22,000 to $40,000.


Molecular Distillation

Stainless steel reactor:


Stainless steel reaction kettle is composed of pot body, pot cover, stirrer, jacket, support and transmission device, shaft sealing device, etc. Materials and holes can be created according to the user's process requirements. The inner surface is mirror-polished to ensure no hygienic dead ends. Due to the completely sealed design, the material is always sterile. The exterior can be a basic color matte finish and can optionally be sandblasted, frosted or cold rolled. The heating method can be selected by steam, electric heating and heat transfer oil to meet the technological needs of different working environments such as acid resistance, alkali resistance, high temperature resistance, abrasion resistance and corrosion resistance. Physical changes such as heating, cooling, liquid extraction, and gas absorption require the device to be repositioned for good results.

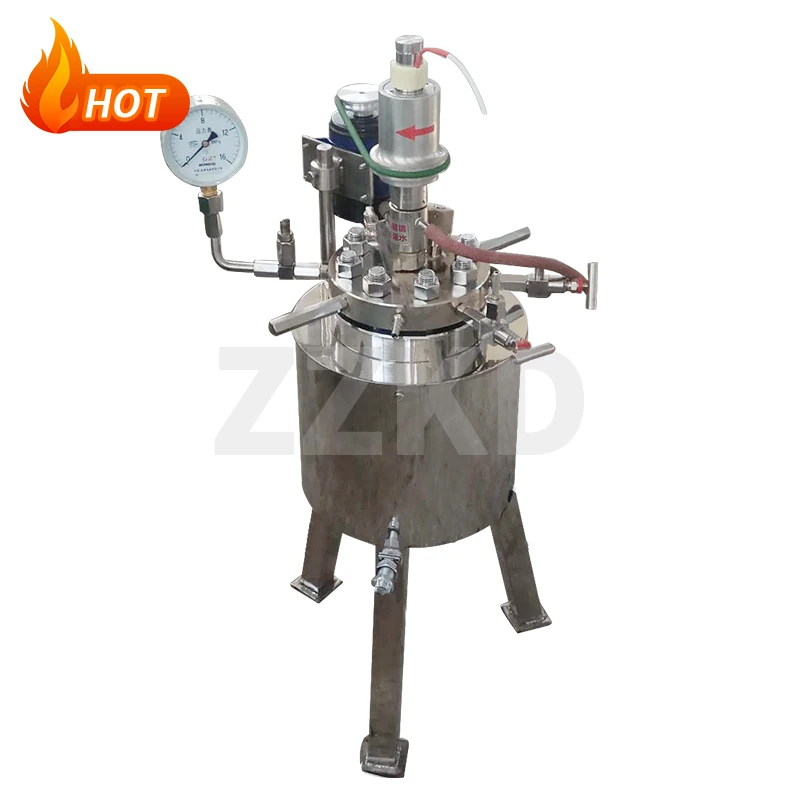

Stainless steel reactor


The stainless steel reaction kettle has the characteristics of rapid heating, high temperature resistance, corrosion resistance, sanitation, and convenient use, and is very suitable for the extraction and concentration of bho oil. The price of stainless steel reactors ranges from tens of dollars to thousands of dollars, which can be purchased according to your own needs.


Centrifuge:


CBD special soaking extraction centrifuge is a filtration equipment with closed upper discharge and intermittent operation. Put the cannabis into the filter bag, put it into the drum, inject ethanol to soak it, when soaking, rotate forward and reverse at low speed. In the filter bag, the water content is less than or equal to 5%. After the machine is stopped, open the cover and take out the filter bag. CBD special soaking extraction centrifuge is mainly suitable for soaking and extracting dried and crushed hemp stems and leaves in solid phase. The soaking liquid is ethanol, soaking temperature is -60°C, and the machine shell is double-layered. THC; can also be widely used in chemical, pharmaceutical, food, light industry and other industries.

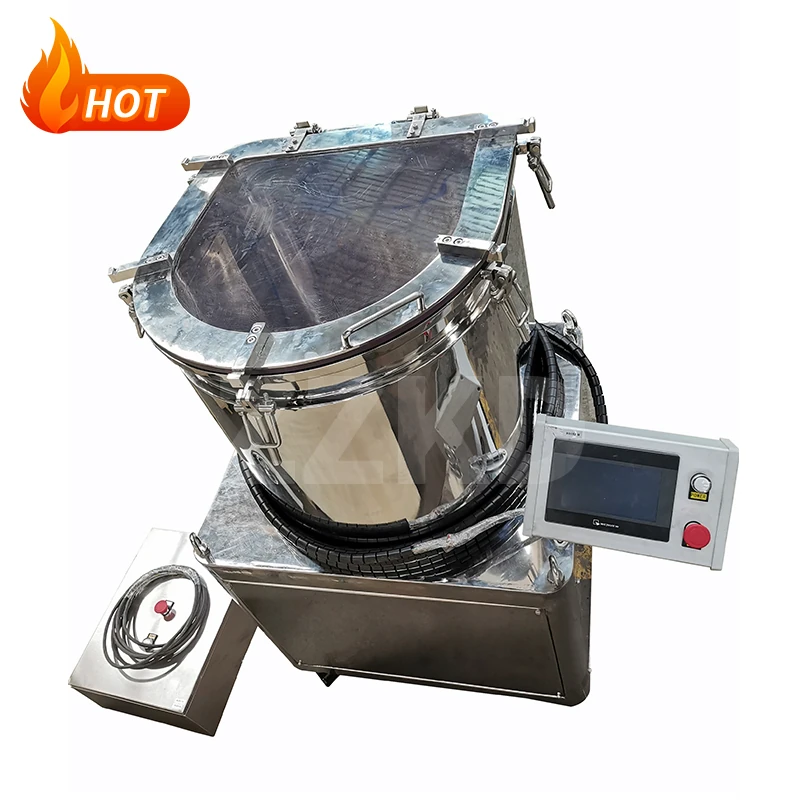

Centrifuge


The centrifuge is the ideal equipment for the CBD extractor machine from industrial hemp. The centrifuge system simplifies the production time, maximizes the extraction rate, and ensures the delivery of high-purity extracts. Can be equipped with heating and cooling equipment to provide the system with maximum control and ease of operation. The centrifuge (ethanol extraction system) specially designed by our company for cannabis extraction adopts closed-loop technology, and the operator can physically remove 97% of the alcohol for different kinds of vegetable oil compounds. Our centrifuges are divided into Disc Stack Centrifuge, Decanter Centrifuge. There are three types of Basket Centrifuge, priced between $5,000-$18,750.


In order to extract high-purity CBD, several machines are required to cooperate with each other. Let us introduce the steps of extracting high-purity CBD oil extractor machine in detail:

1. Use solvent for cannabis flowers and leaves, and use an extraction centrifuge to take out the raw materials;

2. The raw material taken out enters the single-effect evaporator for concentration, and the solvent is recovered;

3. The concentrated liquid enters the thin film evaporator to evaporate the residual solvent;

4. Obtain crude oil and enter molecular distillation to steam out CBD;

5. Use the crystallization kettle to crystallize to obtain high-purity CBD or use high-efficiency preparation liquid phase to obtain high-purity CBD;
